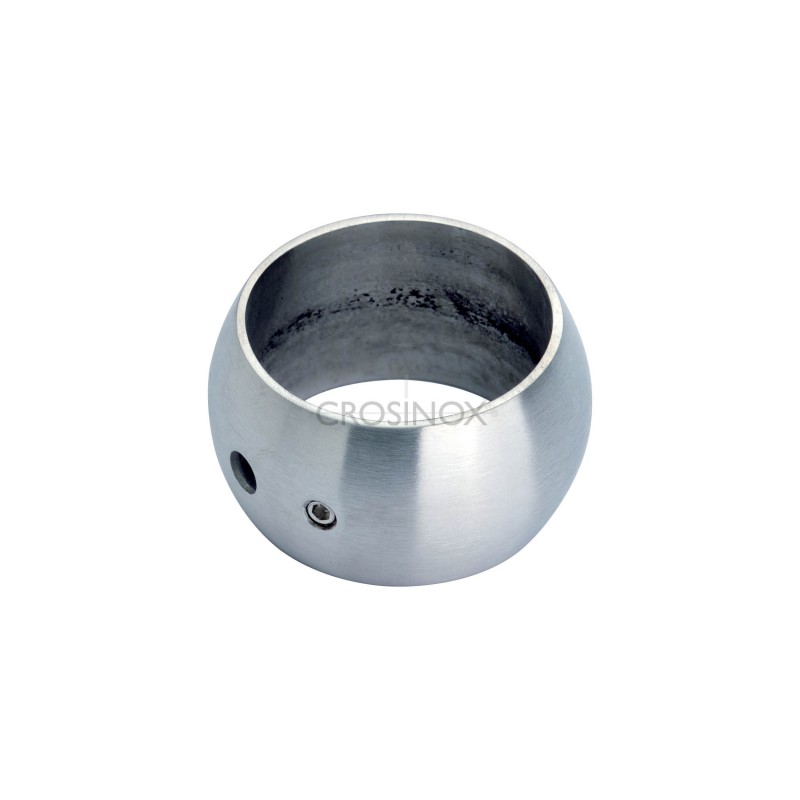

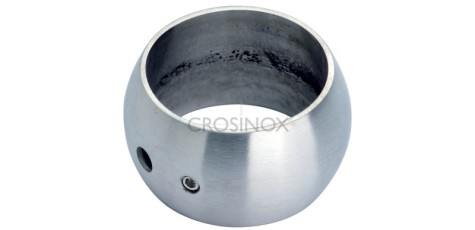

Spheroidal Cap Ring

Balls:

• CN7500300 Ball ring, tube Ø 33.7 mm V4A, polished

• CN7500310 Ball ring, tube Ø 42.4 mm V4A, polished

• CN7500320 Ball ring, tube Ø 48.3 mm V4A, polished

Technical Characteristics:

Product Code	CN7500300	CN7500310	CN7500320
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin

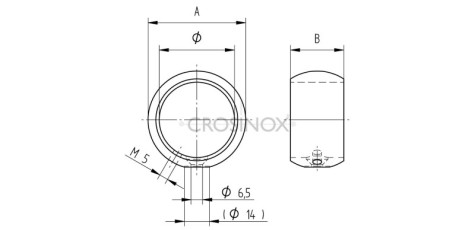

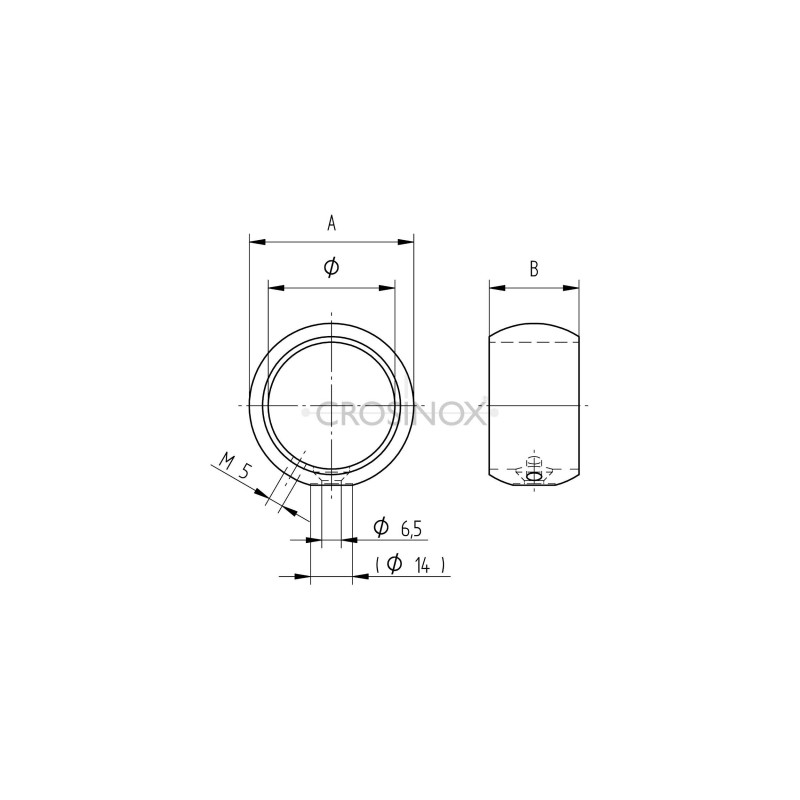

Details	A=45; B=30; C=33,7	A=55; B=30; C=42,4	A=61; B=35; C=48,3
