Semicircular-Half Round Glass Clamp

Glass Clamps:

• CN6250000 Glass clamp semicircular, connection straight V4A, polished

• CN6250337 Glass clamp semicircular, tube Ø 33,7 mm V4A, polished

• CN6250381 Glass clamp semicircular, tube Ø 38,1mm V4A, polished

• CN6250424 Glass clamp semicircular, tube Ø 42.4 mm V4A, polished

Rubber Inserts:

• CN6400010 Rubber insert, set glass 6.00 mm EPDM
• CN6400020 Rubber insert, set glass 7,52 mm EPDM
• CN6400030 Rubber insert, set glass 8,00 mm EPDM
• CN6400040 Rubber insert, set glass 8,76 mm EPDM
• CN6400050 Rubber insert, set glass 9,52 mm EPDM
• CN6400060 Rubber insert, set glass 10.00 mm EPDM

Technical Characteristics:

Product Code	CN6250000	CN6250337	CN6250381	CN6250424
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin	satin
Type	Half round	Half round	Half round	Half round
Measures	49 x 38 mm	49 x 38 mm	49 x 38 mm	49 x 38 mm
Glass Thickness	-	-	-	-
Pipe fitting	Straight	Ø 33.7 mm	Ø 38.1 mm	Ø 42.4 mm

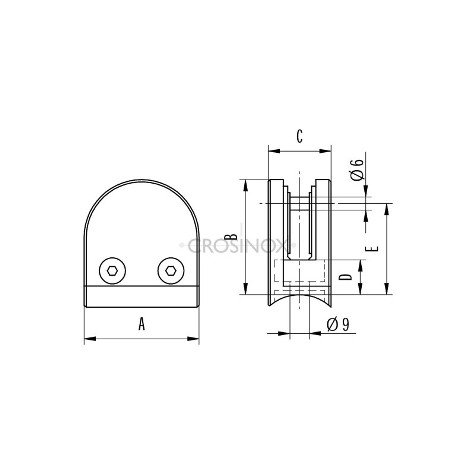

Details	A=38; B=49; C=25; D=16; E=37	A=38; B=49; C=25; D=16; E=37	A=38; B=49; C=25; D=16; E=37	A=38; B=49; C=25; D=16; E=37
