Square Glass Clamp

Glass Clamps:

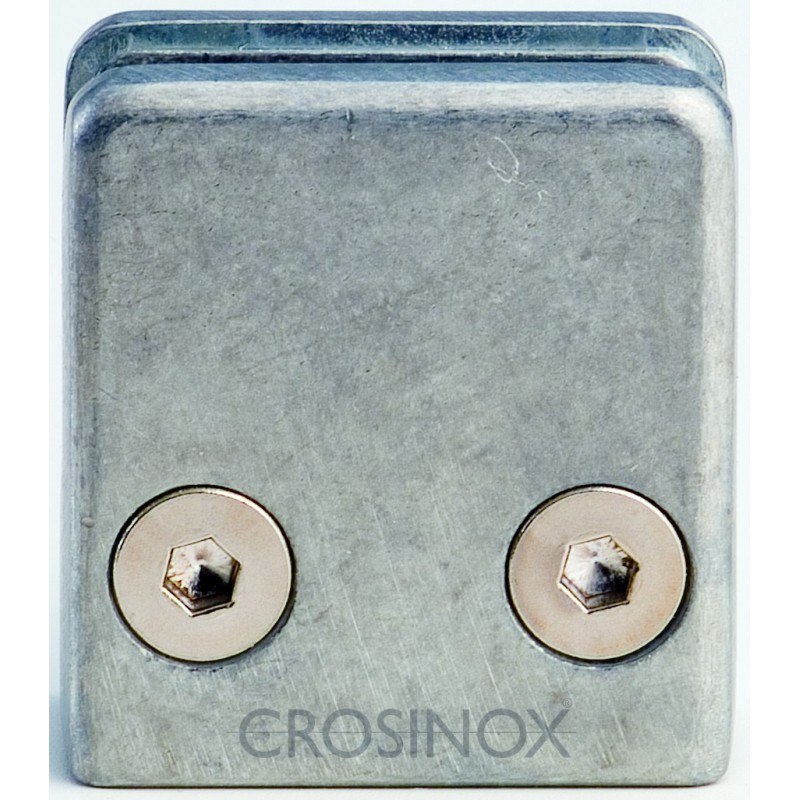

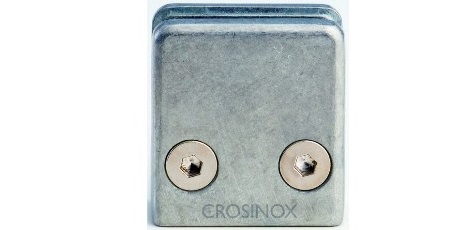

• CN6000000 Glass clamp square, straight zinc die-cast connection

• CN6000337 Glass clamp square, tube Ø 33.7 mm zinc die cast

• CN6000424 Glass clamp square, tube Ø 42,4 mm zinc die cast

• CN6000483 Glass clamp square, tube Ø 48.3 mm zinc die cast

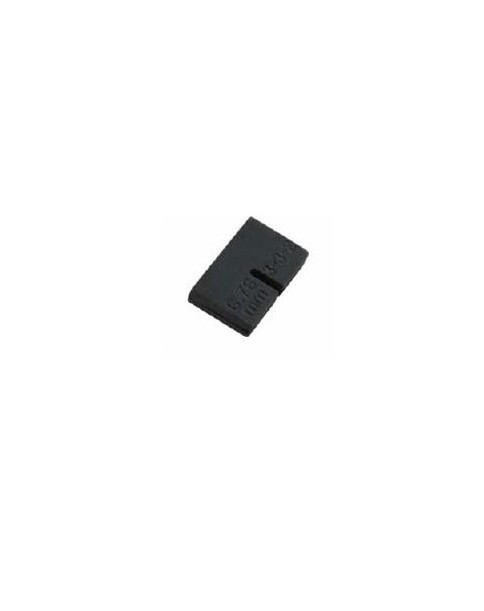

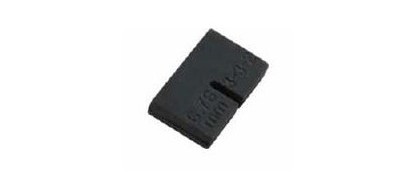

Rubber Inserts:

• CN6400210 Rubber insert, set glass 6,00 mm EPDM
• CN6400220 Rubber insert, set glass 7,52 mm EPDM
• CN6400230 Rubber insert, set glass 8,00 mm EPDM
• CN6400240 Rubber insert, set glass 8,76 mm EPDM
• CN6400250 Rubber insert, set glass 9,52 mm EPDM
• CN6400260 Rubber insert, set glass 10,00 mm EPDM

Technical Characteristics:

Product Code	CN6000000	CN6000337	CN6000424	CN6000483
Material	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin
Type	square glass clamp	square glass clamp	square glass clamp
Measures	45 x 47 mm	45 x 47 mm	45 x 47 mm
Pipe fitting	Straight	Ø 33,7 mm	Ø 42,4 mm

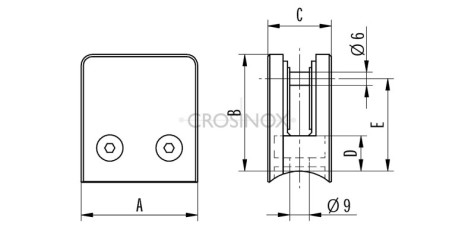

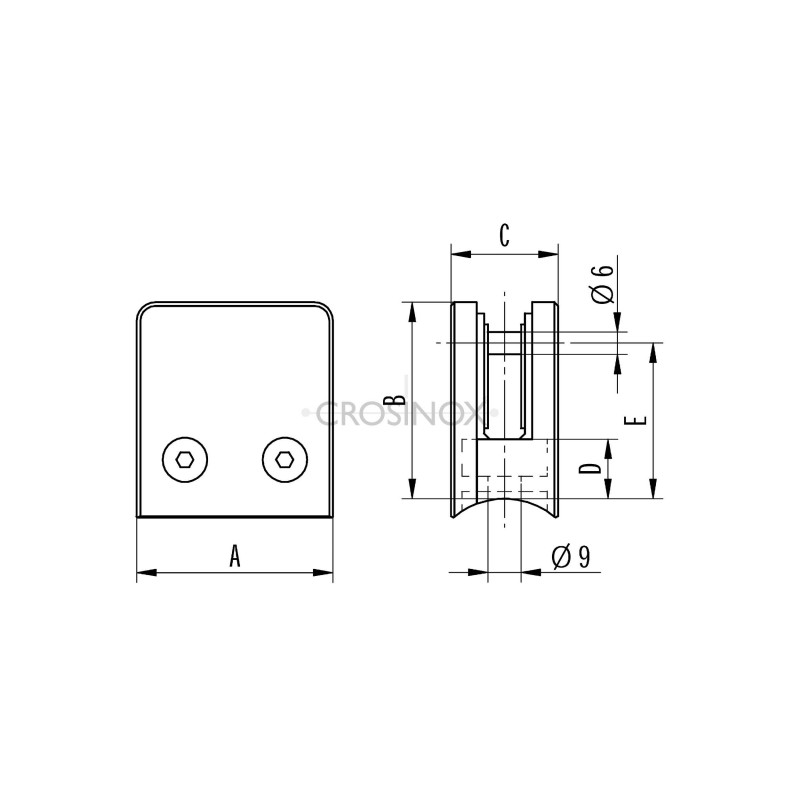

Details	A=45; B=47; C=32; D=17	A=45; B=47; C=32; D=17	A=45; B=47; C=32; D=17
