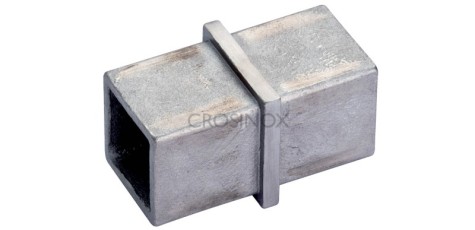

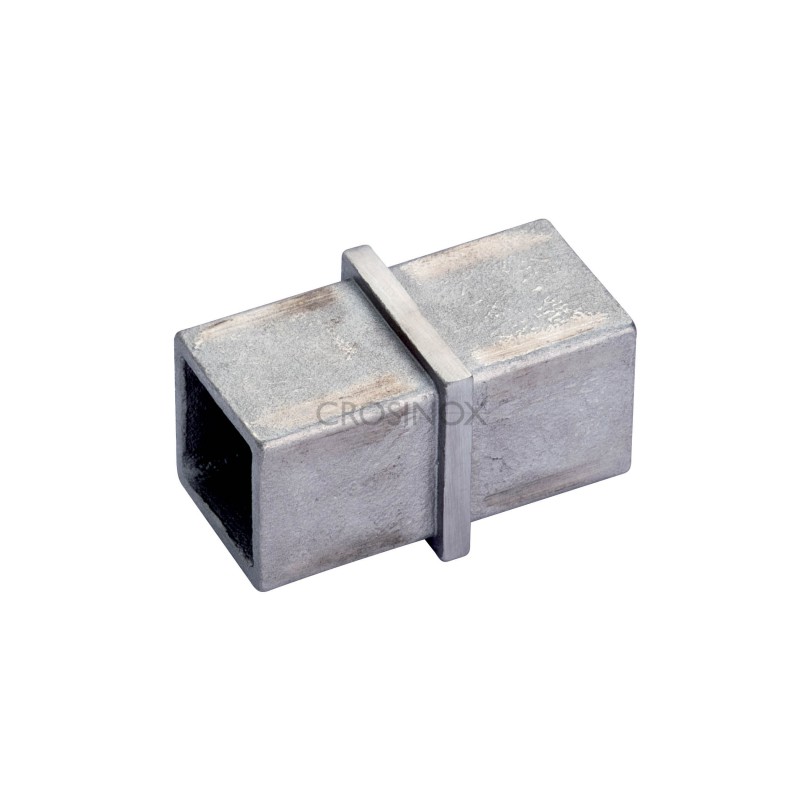

Connecting Sleeve

Connecting Sleeves:

• CN4901000 Connection sleeve, tube 20 x 20 x 1,5 mm V4A, polished
• CN4901010 Connection sleeve, tube 25 x 25 x 2,0 mm V4A, polished
• CN4901020 Connection sleeve, tube 30 x 30 x 2,0 mm V4A, polished
• CN4901030 Connection sleeve, tube 40 x 40 x 2,0 mm V4A, polished

Technical Characteristics:

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

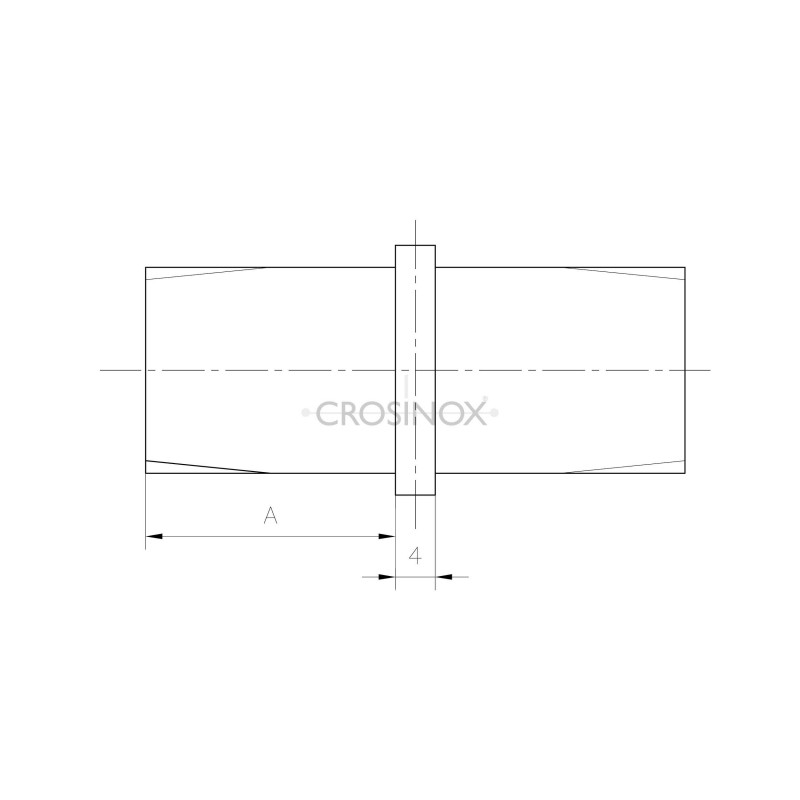

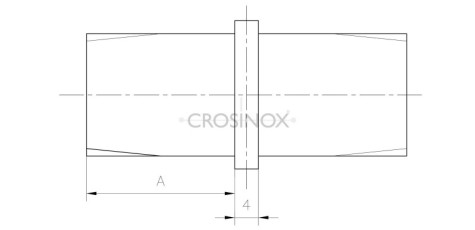

Details:

• CN4901000 -->A=20
• CN4901010 -->A=25
• CN4901020 -->A=25
• CN4901030 -->A=25
