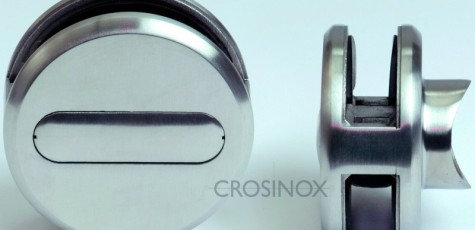

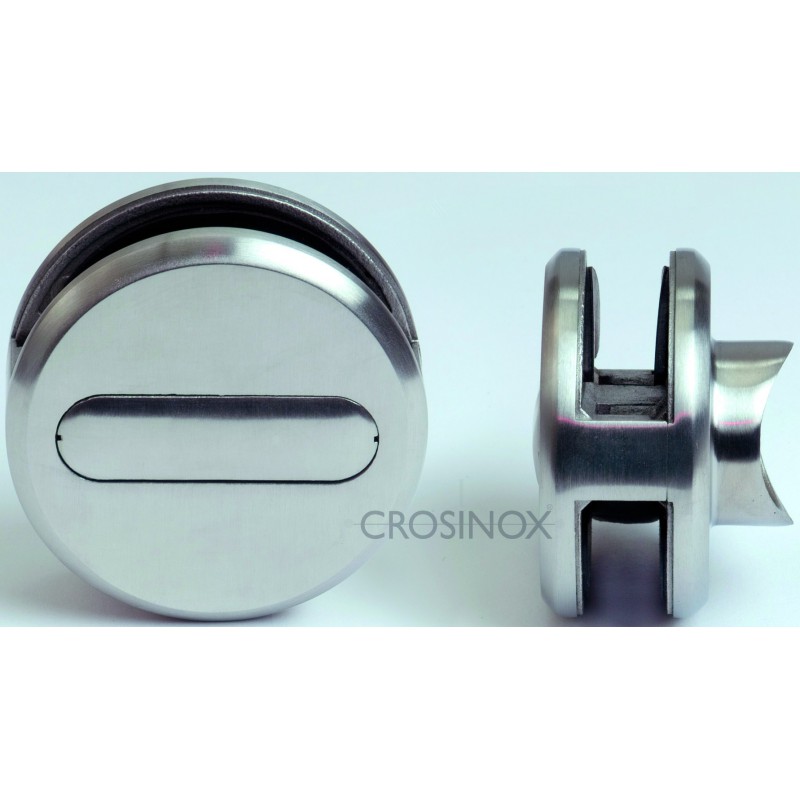

Round Glass Clamp

Glass Clamps:

• CN6210000 Glass clamp, connection straight V4A, polished

• CN6210424 Glass clamp, tube Ø 48.3 mm V4A, polished

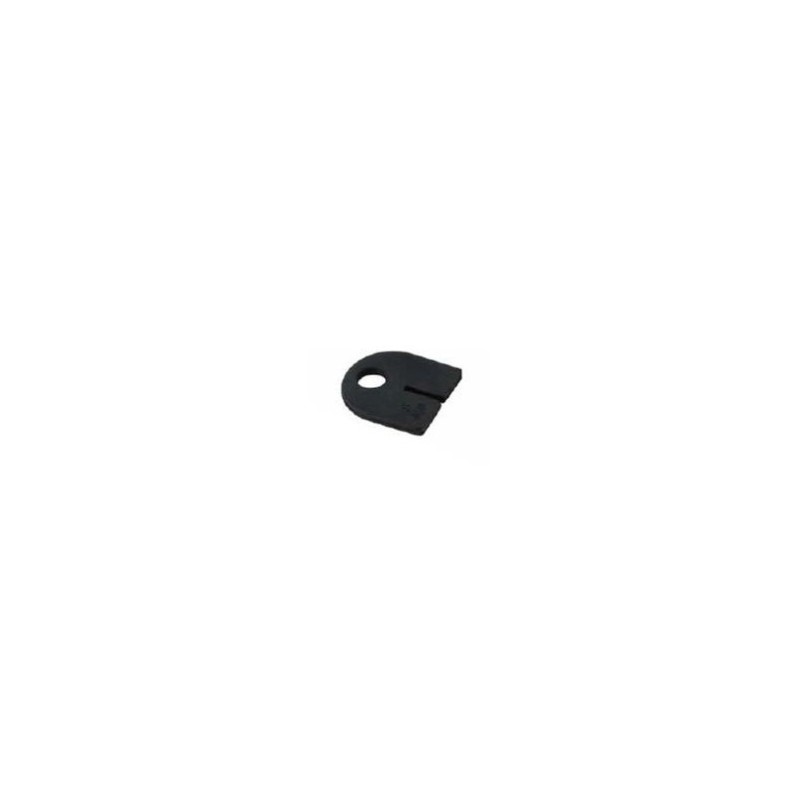

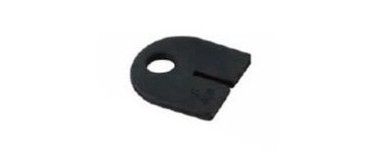

Rubber Inserts:

• CN6400510 Rubber insert, set glass 6,00 mm EPDM
• CN6400520 rubber insert, set glass 7,52 mm EPDM
• CN6400530 Rubber insert, set glass 8,00 mm EPDM
• CN6400540 Rubber insert, set glass 8,76 mm EPDM

Technical Characteristics:

Product Code	CN6210000	CN6210424
Material	AISI 316	AISI 316
Surface	satin	satin
Type	round glass clamp	round glass clamp

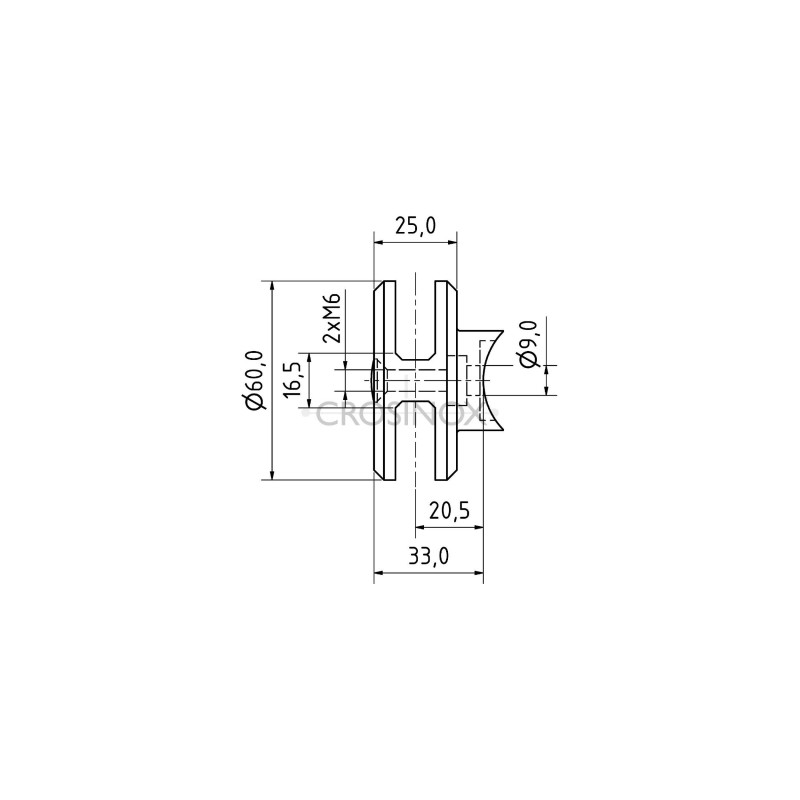

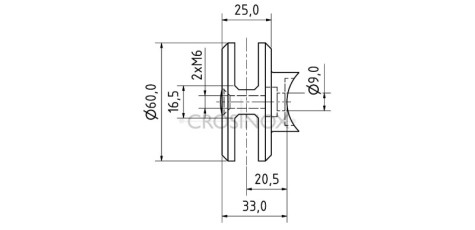

Measures	Ø 60 mm	Ø 60 mm
Pipe fitting	Straight	Ø 42,4 mm
