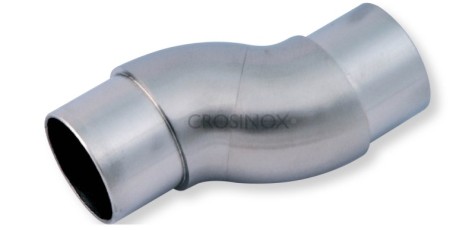

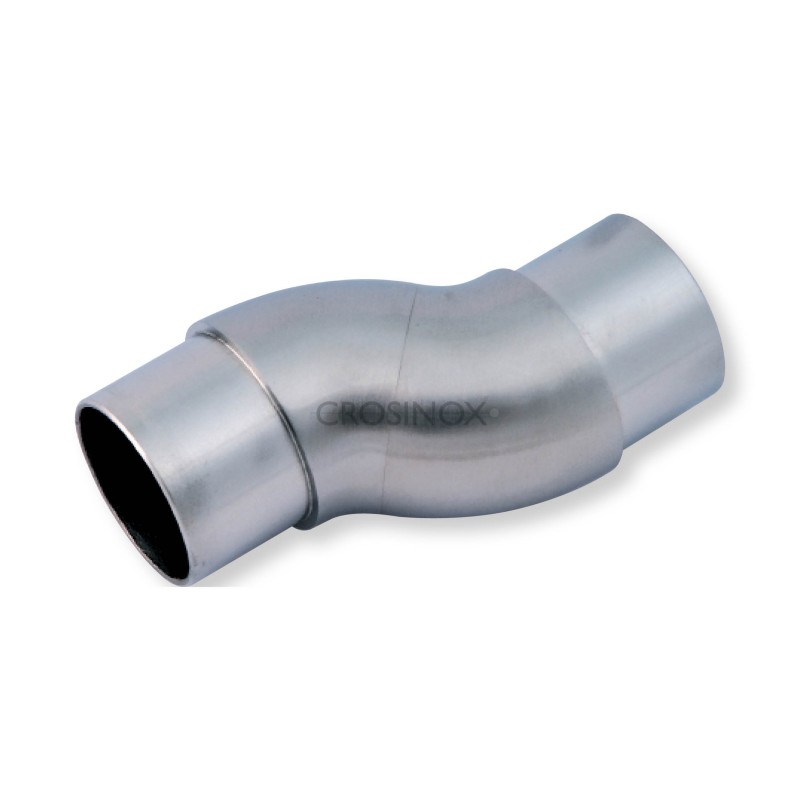

Flexible Bend

Flexible bends:

• 015100 flexible bend, Ø 42,4 x 2,0 mm V2A, polished
• CN4590600 flexible bend, Ø 33,7 x 2,0 mm V4A, polished
• CN4590620 Flexible bend, Ø 42,4 x 2,0 mm V4A, polished
• CN4590630 flexible bend, Ø 42,2 x 2,6 mm V4A, polished
• CN4590640 flexible bend, Ø 48,3 x 2,0 mm V4A, polished

Technical Characteristics for 015100:

• Material: AISI 304
• FInish: Satin
• Dimensions: see above

Technical Characteristics for  CN4590600 , CN4590620 , CN4590630 , CN4590640 :

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

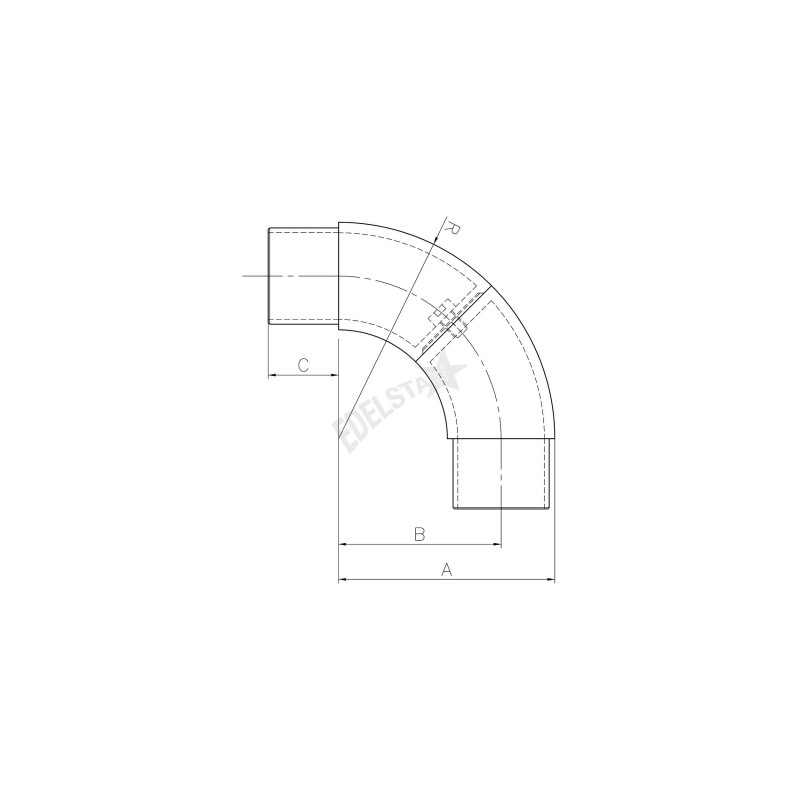

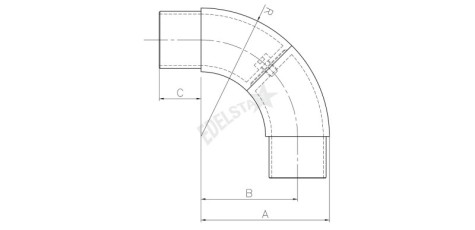

Details:

• 015100        --> A=60; B=43; C=25; R=57
• CN4590600 --> A=60; B=43; C=25; D=57
• CN4590620 --> A=70; B=49; C=25; D=67; E=30
• CN4590630 --> A=70; B=49; C=25; D=67; E=24
• CN4590640 --> A=78; B=54; C=30; D=75; E=24
