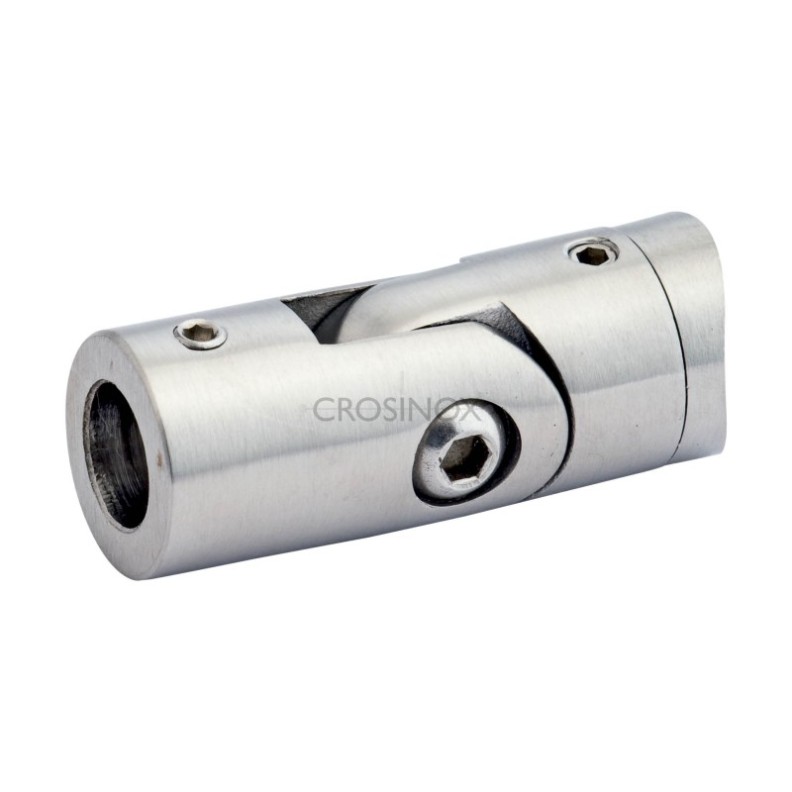

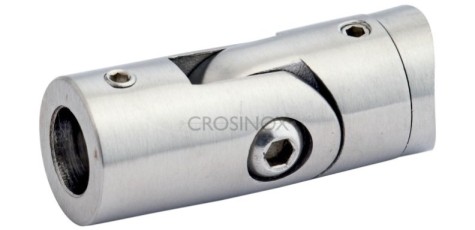

Connector with joint

Connectors with joint:

• CN8700100 Connector with joint, 12,2 mm, straight V4A, polished

• CN8700110 Connector with joint, 12,2 mm, tube Ø 33,7 mm V4A, polished

• CN8700120 Connector with joint, 12.2 mm, tube Ø 42.4 mm V4A, polished

Technical Characteristics:

Product Code	CN8700100	CN8700110	CN8700120
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Type	three-piece, for mounting between round uprights	three-piece, for mounting between round uprights	three-piece, for mounting between round uprights
Pipe Fitting	Straight	Ø 33.7 mm	Ø 42.4 mm

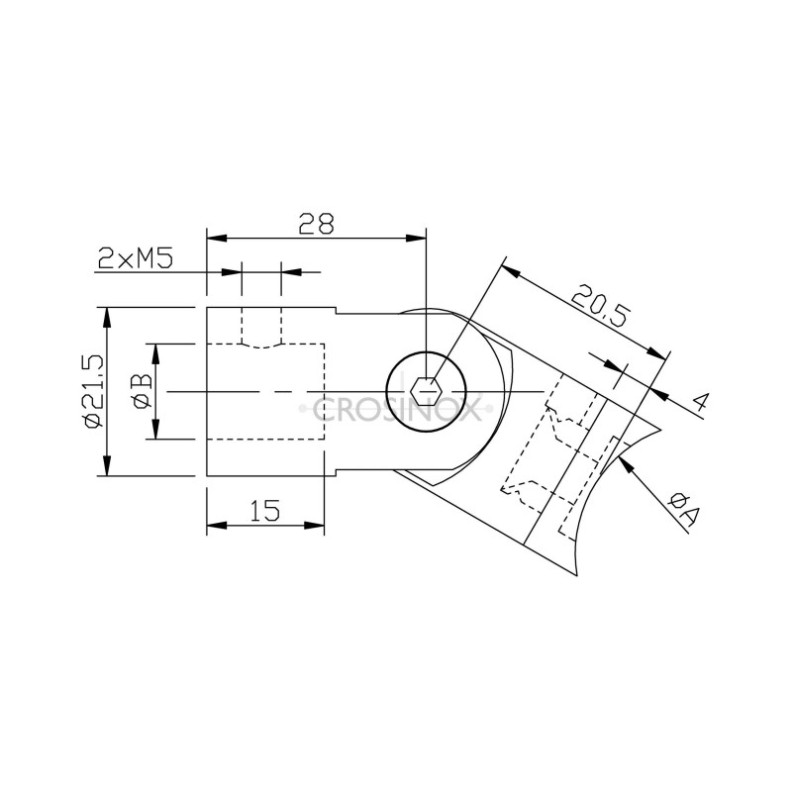

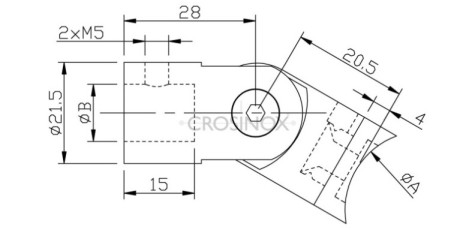

Details	Hole=Ø 12,2 mm	A=33,7  Hole=Ø 12,2 mm	A=42,4  Hole=Ø 12,2 mm
