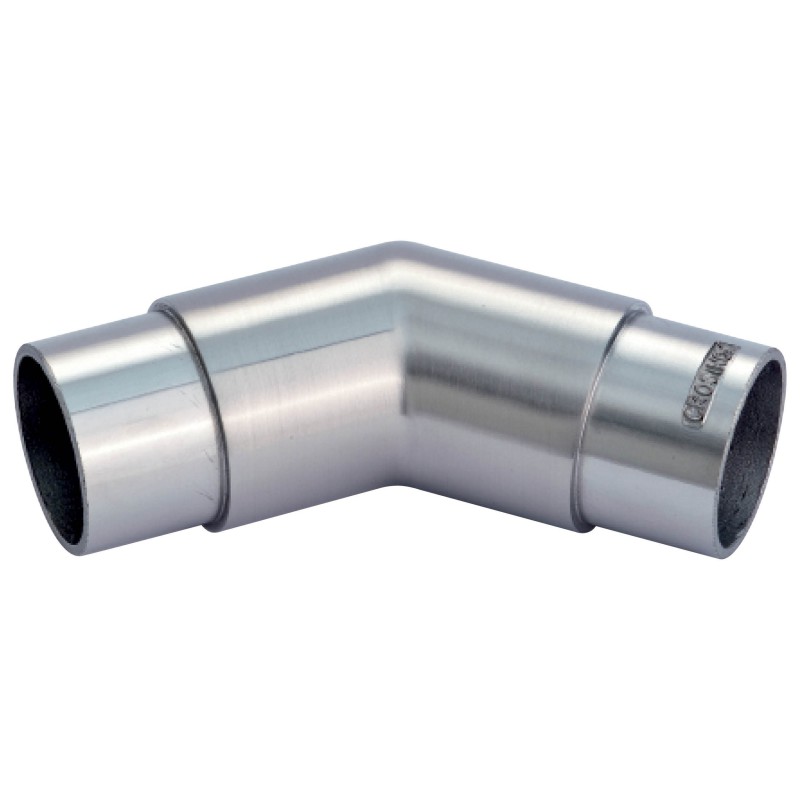

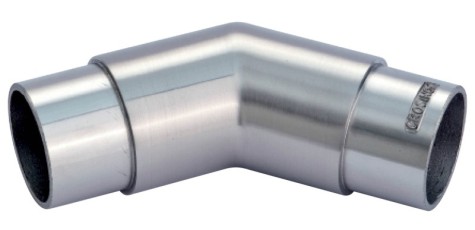

Mitred Elbow

Elbows:

• 040400 corner bend 45 °, tube Ø 33,7 x 2,0 mm V2A, polished
• 040500 corner bend 45 °, pipe Ø 42,4 x 2,0 mm V2A, polished
• 040600 corner bend 45 °, tube Ø 48,3 x 2,0 mm V2A, polished
• CN4590500 corner bend 45 °, tube Ø 33,7 x 2,0 mm V4A, polished
• CN4590530 corner bend 45 °, tube Ø 42,4 x 2,0 mm V4A, polished
• CN4590560 corner bend 45 °, tube Ø 48,3 x 2,0 mm V4A, polished

Technical Characteristics for 040400, 040500, 040600:

• Material: AISI 304
• FInish: satin
• Dimensions: see above

Technical Characteristics for CN4590500, CN4590530, CN4590560 :

• Material: AISI 316
• FInish: satin
• Dimensions: see above

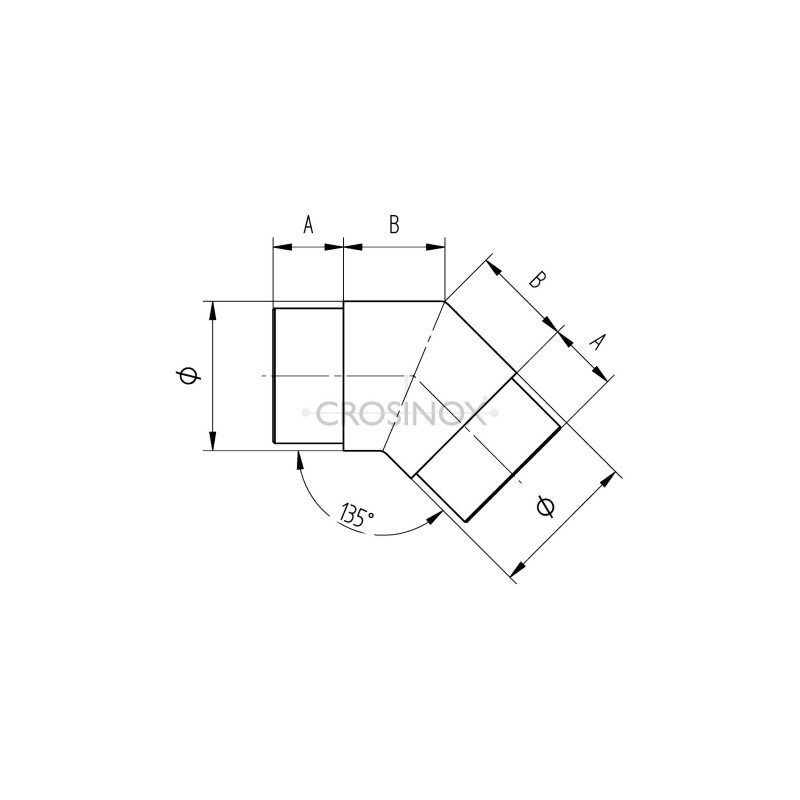

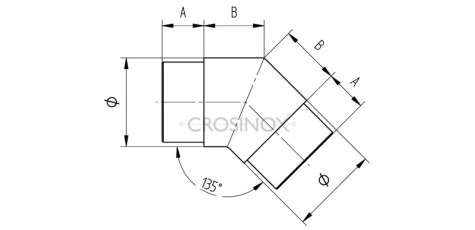

Details:

• 040400 --> A=17; B=30
• 040500 --> A=20; B=29
• 040600 --> A=23; B=43
• CN4590500 --> A=25; B=45
• CN4590530 --> A=25; B=50
• CN4590560 --> A=25; B=50
