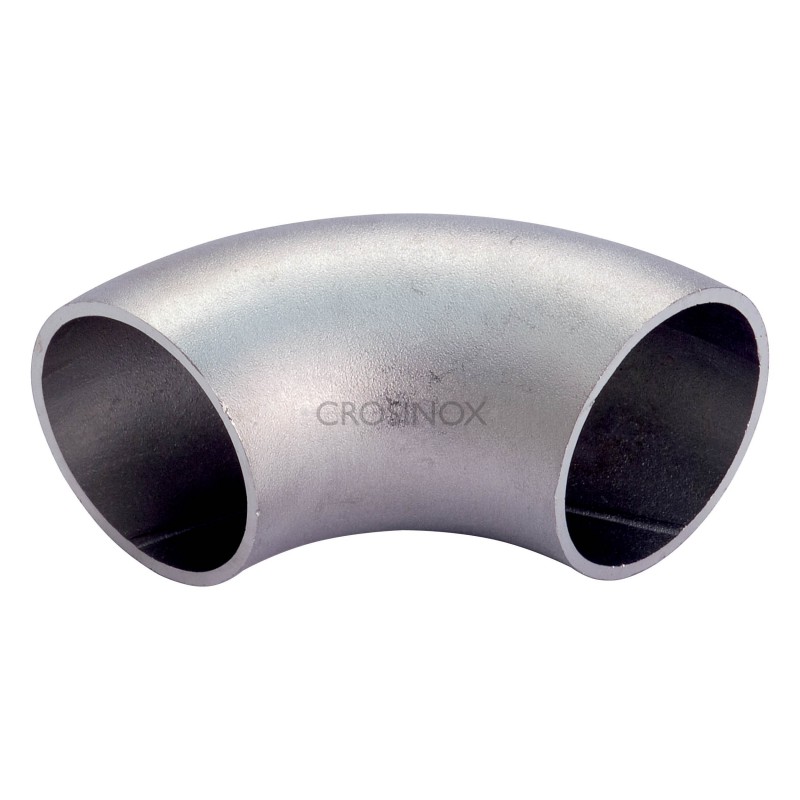

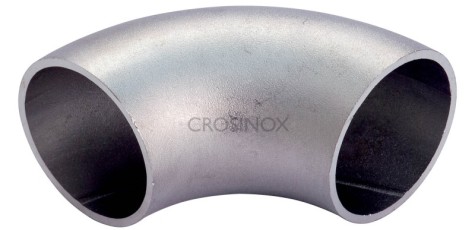

Soft Mitred Elbow

Elbows:

• CN4600040 elbow 90 °, tube Ø 26,9 x 1,6 mm V2A, unpolished
• CN4600050 elbow 90 °, tube Ø 26,9 x 2,0 mm V2A, unpolished
• CN4600070 elbow 90 °, tube Ø 42,4 x 2,0 mm V2A, unpolished
• CN4600220 elbow 90 °, tube Ø 42,4 x 2,0 mm V4A, unpolished
• CN4600310 elbow 90 °, tube Ø 21,3 x 2,0 mm V2A, polished
• CN4600320 elbow 90 °, tube Ø 26,9 x 2,0 mm V2A, polished
• CN4600330 elbow 90 °, tube Ø 33,7 x 2,0 mm V2A, polished
• CN4600340 elbow 90 °, tube Ø 42,4 x 2,0 mm V2A, polished
• CN4600350 elbow 90 °, tube Ø 48,3 x 2,0 mm V2A, polished
• CN4600360 elbow 90 °, tube Ø 60,3 x 2,0 mm V2A, polished

Technical Characteristics for CN4600040, CN4600050, CN4600070, CN4600220:

• Material: AISI 304
• FInish: non satin
• Dimensions: see above

Technical Characteristics for CN4600310, CN4600320, CN4600330, CN4600340, CN4600350, CN4600360:

• Material: AISI 304
• FInish: satin
• Dimensions: see above

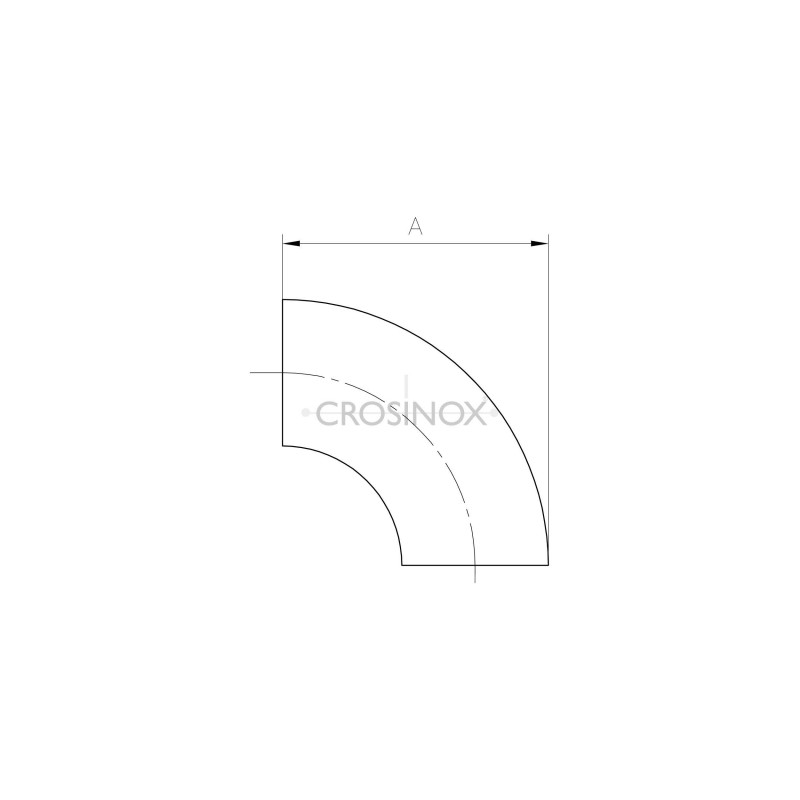

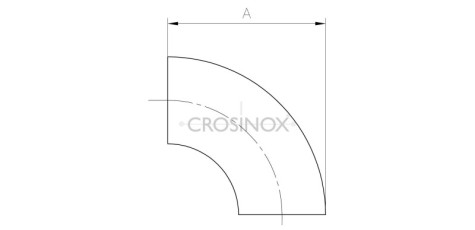

Details:

• CN4600040 --> A=43
• CN4600050 --> A=55
• CN4600070 --> A=70
• CN4600220 --> A=69
• CN4600310 --> A=38
• CN4600320 --> A=43
• CN4600330 --> A=55
• CN4600340 --> A=70
• CN4600350 --> A=81,5
• CN4600360 --> A=106,5
