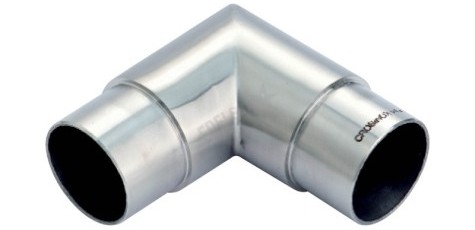

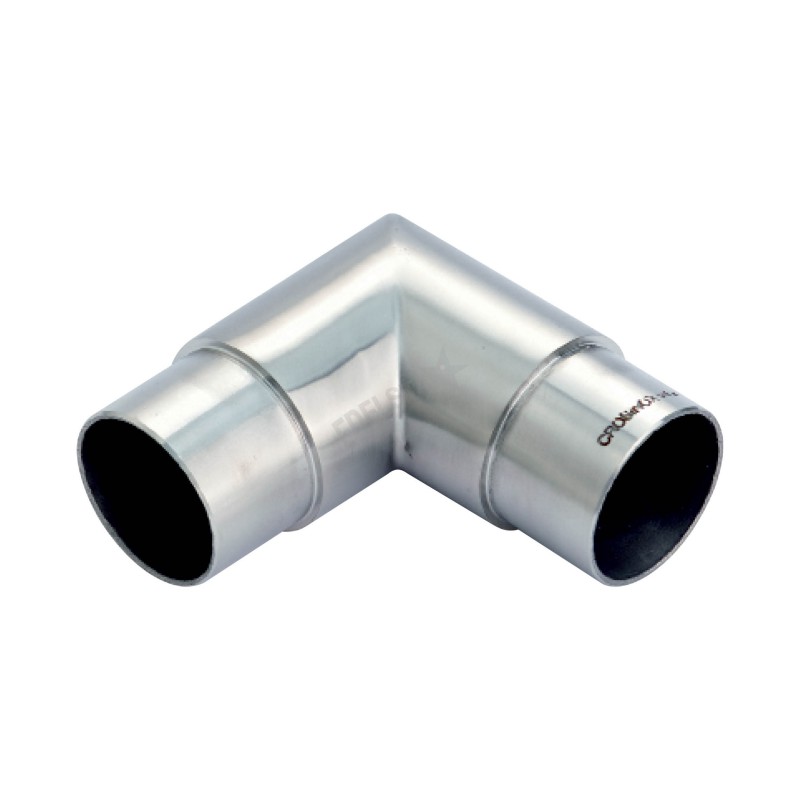

Mitred Elbow

Elbows:

• 035400 corner elbow 90 °, tube Ø 33,7 x 2,0 mm V2A, polished
• 035500 corner elbow 90 °, tube Ø 42,4 x 2,0 mm V2A, polished
• 035600 corner elbow 90 °, tube Ø 48,3 x 2,0 mm V2A, polished
• CN4590425 corner elbow 90 °, tube Ø 42,4 x 2,0 mm V2A, polished
• CN4590400 corner elbow 90 °, tube Ø 33,7 x 2,0 mm V4A, polished
• CN4590420 corner elbow 90 °, tube Ø 40,0 x 2,0 mm V4A, polished
• CN4590430 corner elbow 90 °, tube Ø 42,2 x 2,0 mm V4A, polished
• CN4590450 corner elbow 90 °, tube Ø 42,2 x 2,6 mm V4A, polished
• CN4590460 corner elbow 90 °, tube Ø 48,3 x 2,0 mm V4A, polished
• CN4590470 corner elbow 90 °, tube Ø 48,3 x 2,6 mm V4A, polished
• CN4590480 corner elbow 90 °, tube Ø 60,3 x 2,0 mm V4A, polished

Technical Characteristics for 035400, 035500 , 035600, CN4590425:

• Material: AISI 304
• FInish: Satin

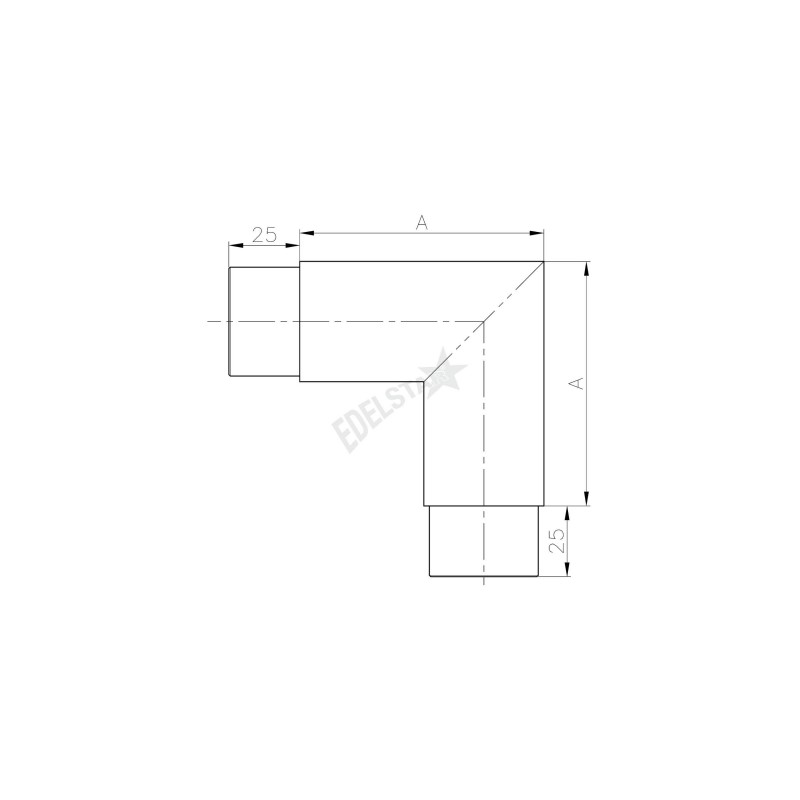

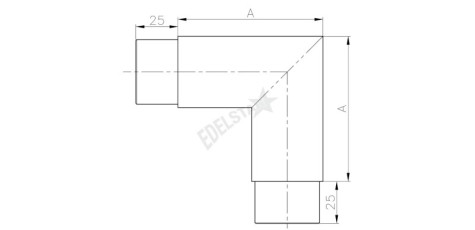

• Dimensions: see above

Technical Characteristics for CN4590400, CN4590420, CN4590430, CN4590450, CN4590460, CN4590470, CN4590480:

• Material: AISI 316
• FInish: Satin
• Dimensions: see above
