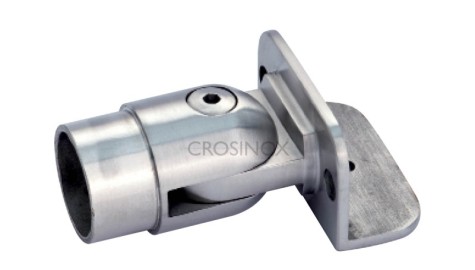

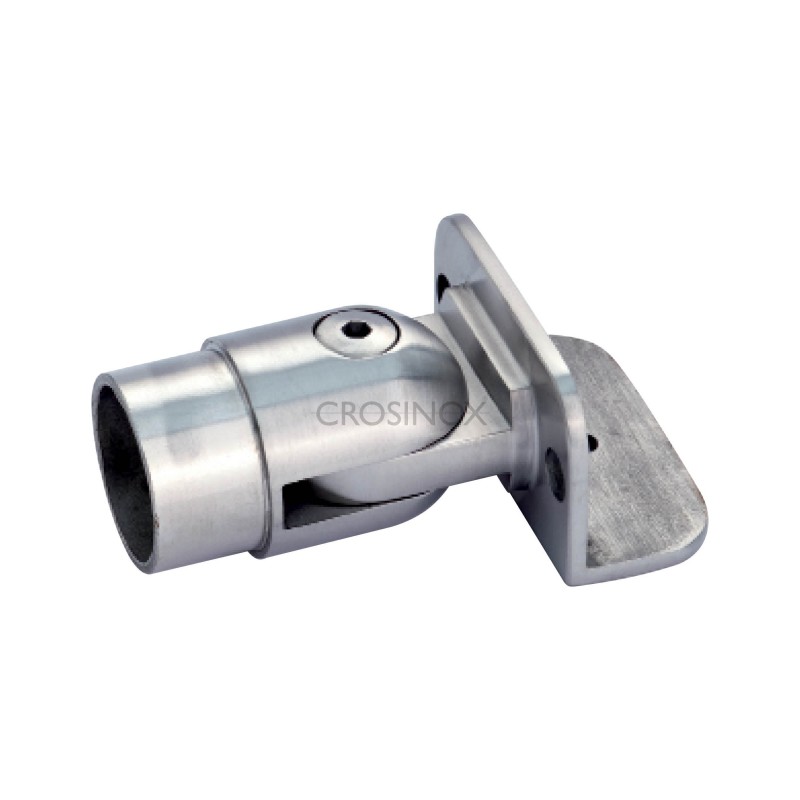

Joint adapter

Joints with flange:

• CN4595000 Joint adapter, tube Ø 33,7 x 2,0 mm V4A, polished
• CN4595100 Joint adapter, tube Ø 42.4 x 2,0 mm V4A, polished

Technical Characteristics:

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

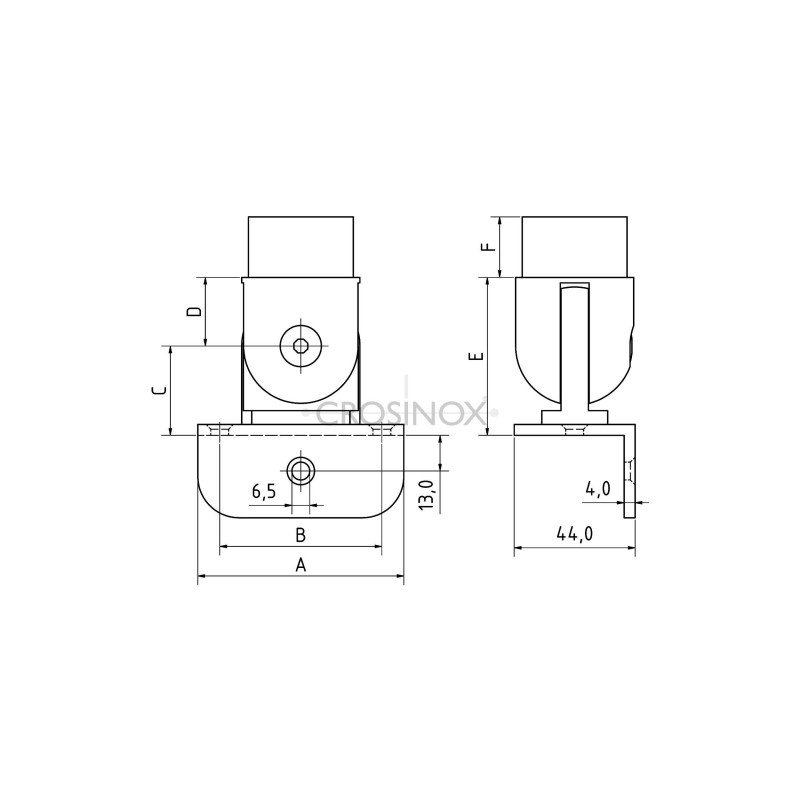

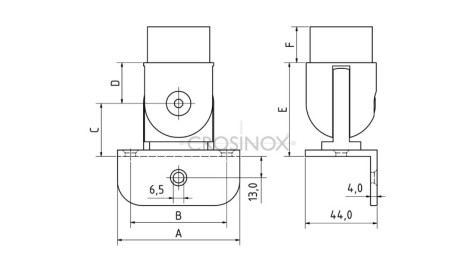

Details:

• CN4595000 --> A=66; B=50; C=32; D=20,5; E=52,5; F=22
• CN4595100 --> A=75; B=59; C=3205; D=25; E=57,5; F=22
