Semicircular-Half Round Glass Clamp

Glass Clamps:

• 777000 Glass clamp semicircular, connection straight V2A, polished
• 777337 Glass clamp semicircular, tube Ø 33.7 mm V2A, polished
• 777424 Glass clamp semicircular, tube Ø 42.4 mm V2A, polished
• 777483 Glass clamp semicircular, tube Ø 48.3 mm V2A, polished

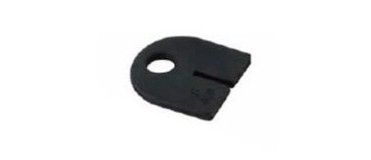

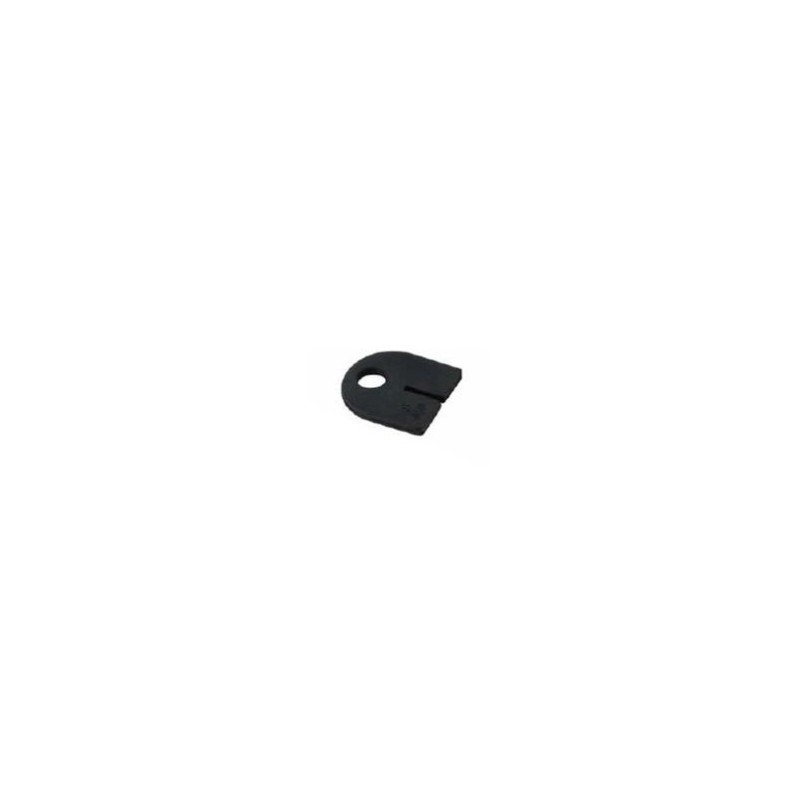

Rubber Inserts:

• 990600 Rubber insert, set glass 6,00 mm EPDM
• 990800 Rubber insert, set glass 8,00 mm EPDM
• 990876 Rubber insert, set glass 8,76 mm EPDM
• 991000 rubber insert, set glass 10.00 mm EPDM

Technical Characteristics:

Product Code	777000	777337	777424	777483
Material	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	Stainless steel effect	Stainless steel effect	Stainless steel effect
Type	Half round	Half round	Half round	Half round
Measures	40 x 50 mm	40 x 50 mm	40 x 50 mm	40 x 50 mm
Glass Thickness	6, 8, 10	-	-	-
Pipe fitting	Straight	Ø 33,7 mm	Ø 42.4	Ø 48.3
Details	A=40; B=50; C=26; D=16; E=37,5	A=40; B=50; C=26; D=16; E=37,5	A=40; B=50; C=26; D=16; E=37.5	A=40; B=50; C=26; D=16; E=48,3
