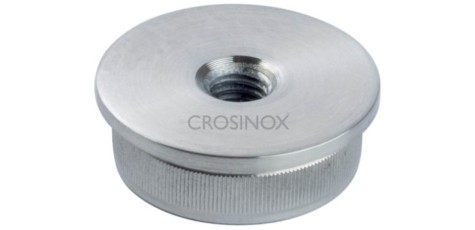

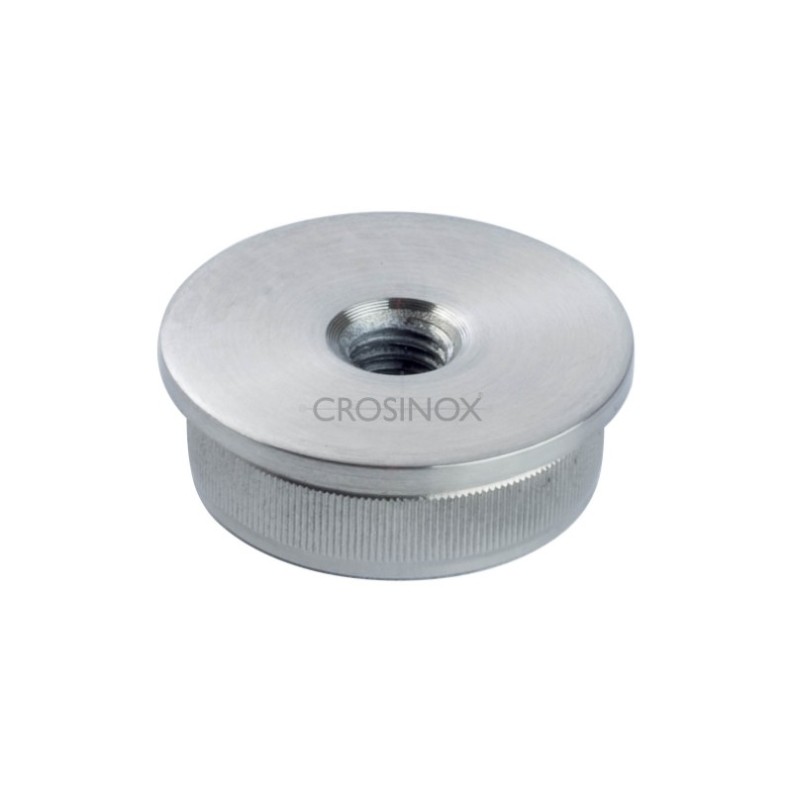

Round Cap - Terminal

Caps:

• CN3233720 cap with knurl, tube Ø 33,7 x 2,0 mm solid V2A, polished

• CN3233726 cap with knurl, tube Ø 33,7 x 2,6 mm solid V2A, polished

• CN3242420 cap with knurl, tube Ø 42,4 x 2,0 mm solid V2A, polished

• CN3242426 cap with knurl, tube Ø 42,4 x 2,6 mm solid V2A, polished

• CN3248320 cap with knurl, tube Ø 48,3 x 2,0 mm solid V2A, polished

• CN3248326 cap with knurl, tube Ø 48.3 x 2.6 mm solid V2A, polished

Technical Characteristics:

Product Code	CN3233720	CN3233726	CN3242420
Material	AISI 304	AISI 304	AISI 304
Type	massif	massif	massif

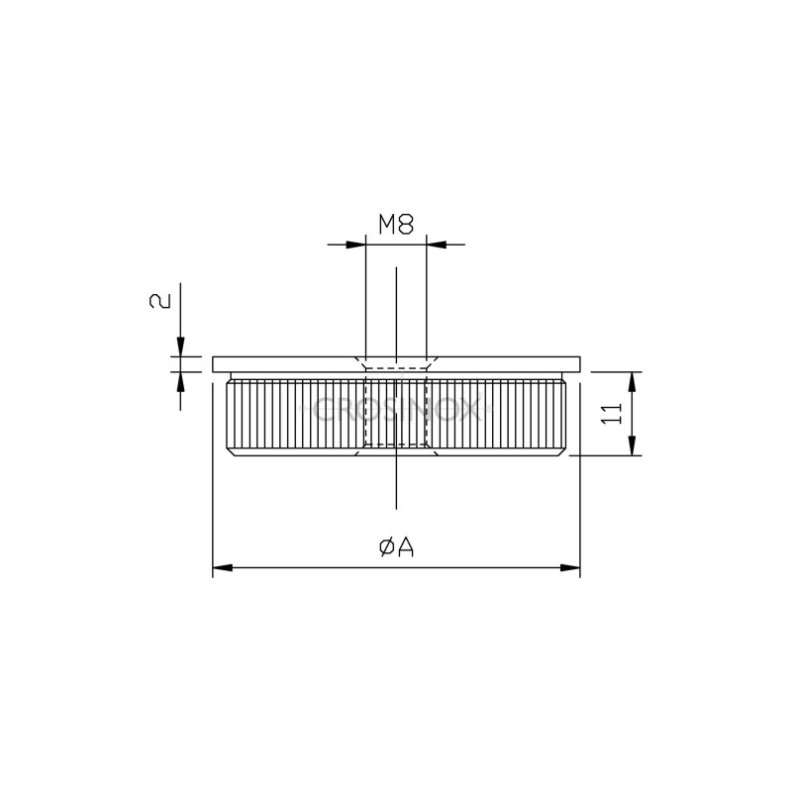

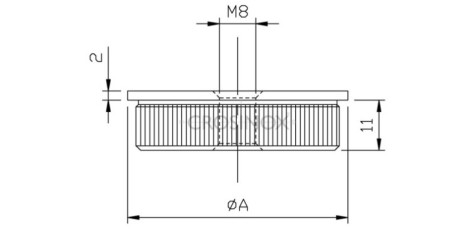

Details	A=33,7 x 2,0 mm Hole=M8	A=33,7 x 2,6 mm Hole=M8	A=42,4 x 2,0 mm Hole=M8









Product Code	CN3242426	CN3248320	CN3248326
Material	AISI 304	AISI 304	AISI 304
Type	massif	massif	massif
Details	A=42,4 x 2,6 mm Hole=M8	A=48,3 x 2,0 mm Hole=M8	A=48,3 x 2,6 mm Hole=M8
