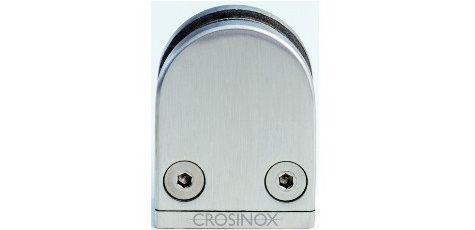

Semicircular-Half Round Glass Clamp

Glass Clamps:

• CN6150000 Glass clamp semicircular, connection straight V4A, polished

• CN6150424 Glass clamp semicircular, tube Ø 42.4 mm V4A, polished

• CN6150483 Glass clamp semicircular, tube Ø 48.3 mm V4A, polished

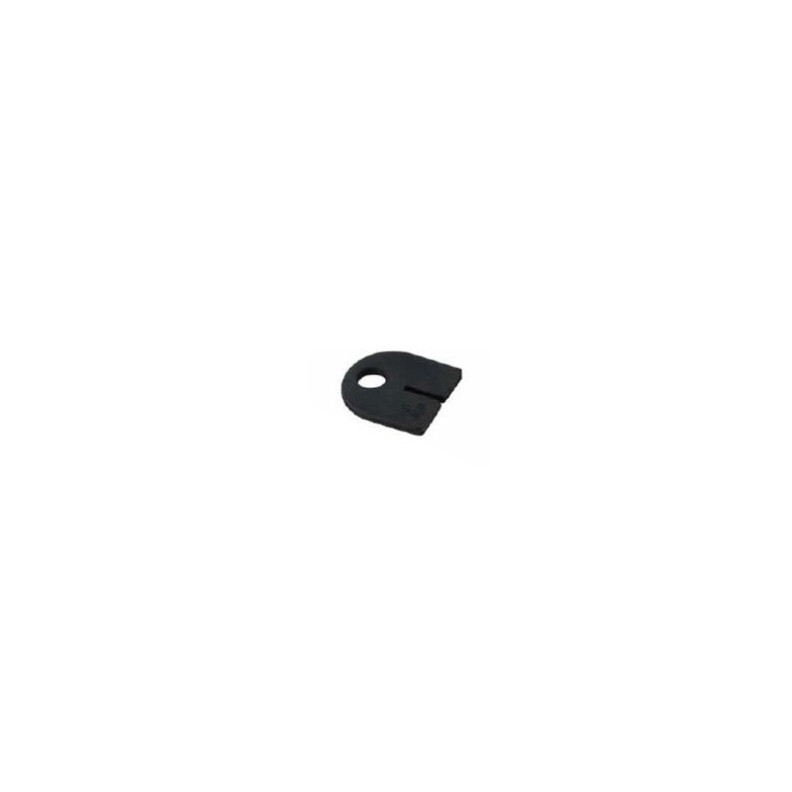

Rubber Inserts:

• CN6400610 Rubber insert, set glass 10,76 mm EPDM
• CN6400620 Rubber insert, set glass 11,52 mm EPDM
• CN6400630 Rubber insert, set glass 12,00 mm EPDM

Technical Characteristics:

Product Code	CN6150000	CN6150424	CN6150483
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Type	Half round	Half round	Half round
Measures	59 x 43 mm	59 x 43 mm	59 x 43 mm
Glass Thickness	-	-	-
Pipe fitting	Straight	Ø 42,4 mm	Ø 48,3 mm

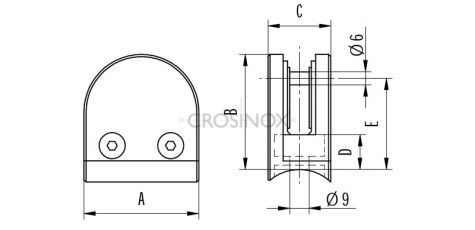

Details	A=43; B=59; C=29; D=16; E=46,5	A=43; B=59; C=29; D=16; E=46,5	A=43; B=59; C=29; D=16; E=46,5
