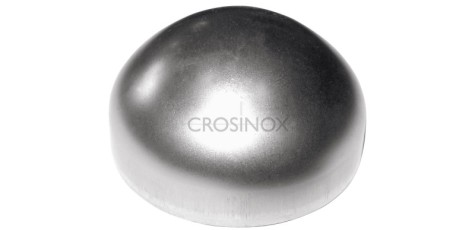

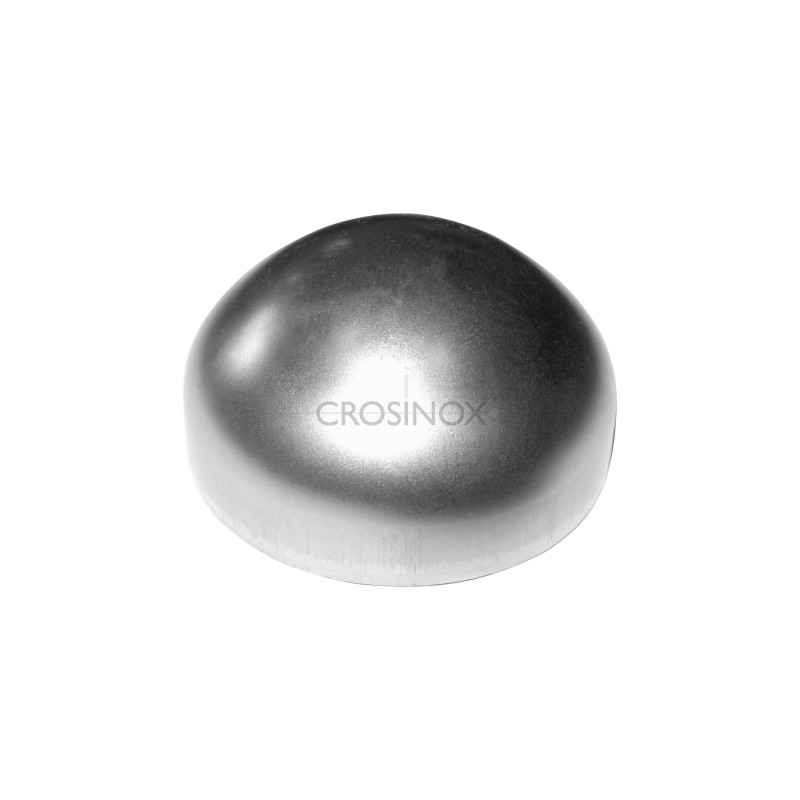

Hemispheres - Semispheroidal Terminal Ball

Hemispheres:

• CN7000100 hemisphere, Ø 33,7 mm hollow V2A, raw

• CN7000120 hemisphere, Ø 48 mm hollow V2A, raw

• CN7000140 hemisphere, Ø 60 mm hollow V2A, raw

• CN7000150 hemisphere, Ø 70 mm hollow V2A, raw

• CN7000160 hemisphere, Ø 80 mm hollow V2A, raw

• CN7000180 hemisphere, Ø 100 mm hollow V2A, raw

• CN7000190 hemisphere, Ø 120 mm hollow V2A, raw

• CN7000200 Hemisphere, Ø 150 mm hollow V2A, raw

Technical Characteristics:

Product Code	CN7000100	CN7000120	CN7000140	CN7000150
Material	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin

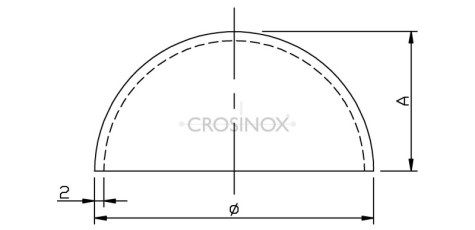

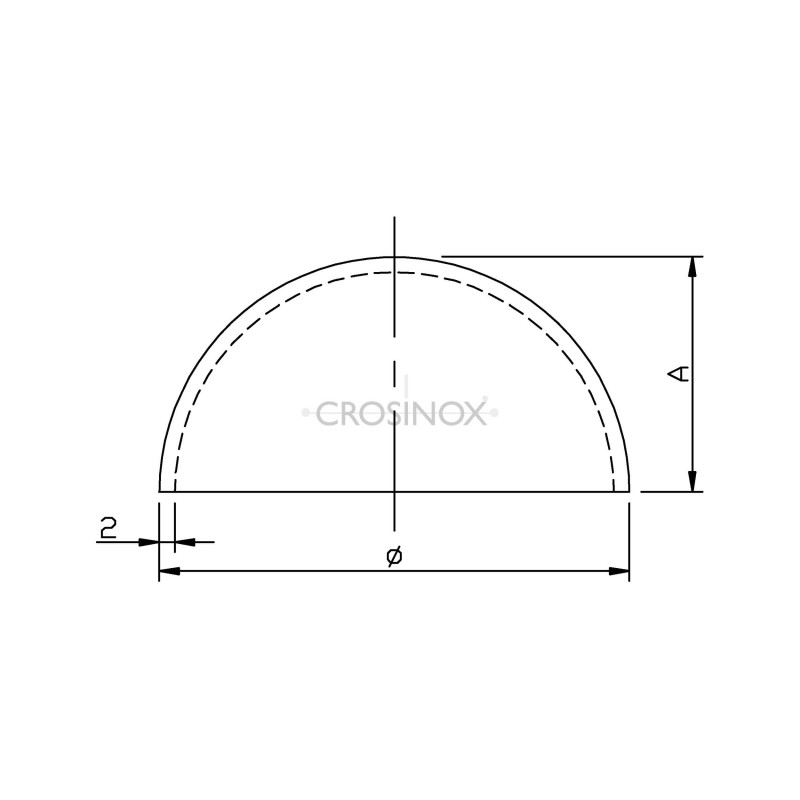

Details	A=16,84; Ø=33,7	A=24; Ø=48	A=30; Ø=60	A=35; Ø=70

















Product Code	CN7000160	CN7000180	CN7000190	CN7000200
Material	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin
Details	A=40; Ø=80	A=50; Ø=100	A=60; Ø=120	A=75; Ø=150
