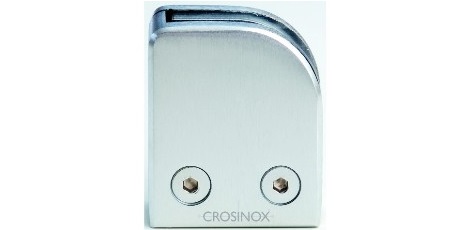

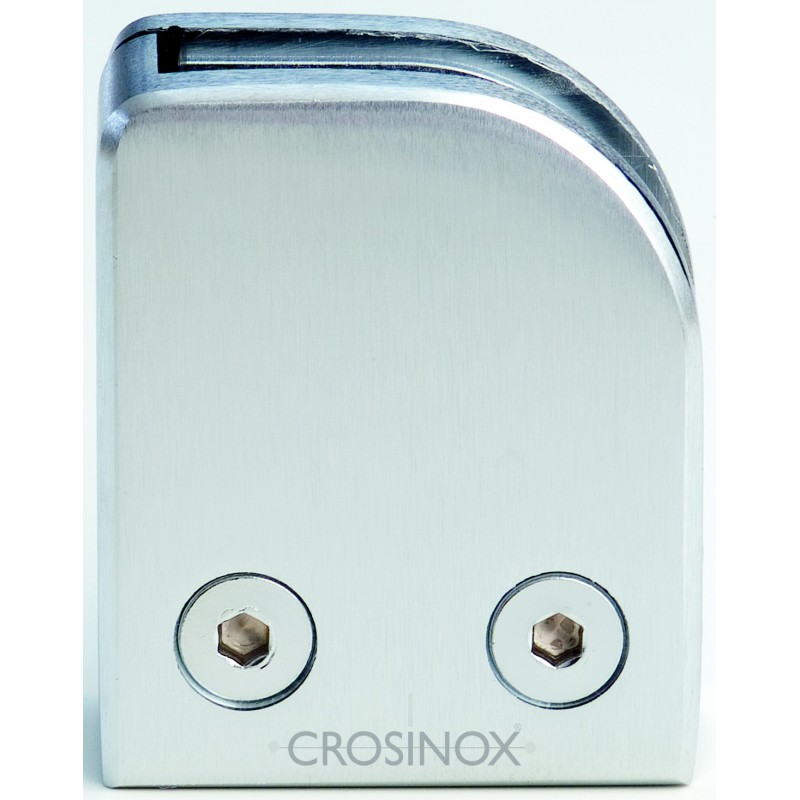

Corner Glass Clamp

Glass Clamps:

• CN6101424 Glass clamp corner, pipe Ø 42,4 mm / left stainless steel effect zinc die-cast

• CN6102424 Glass clamp corner, pipe Ø 42,4 / right stainless steel effect die-cast zinc

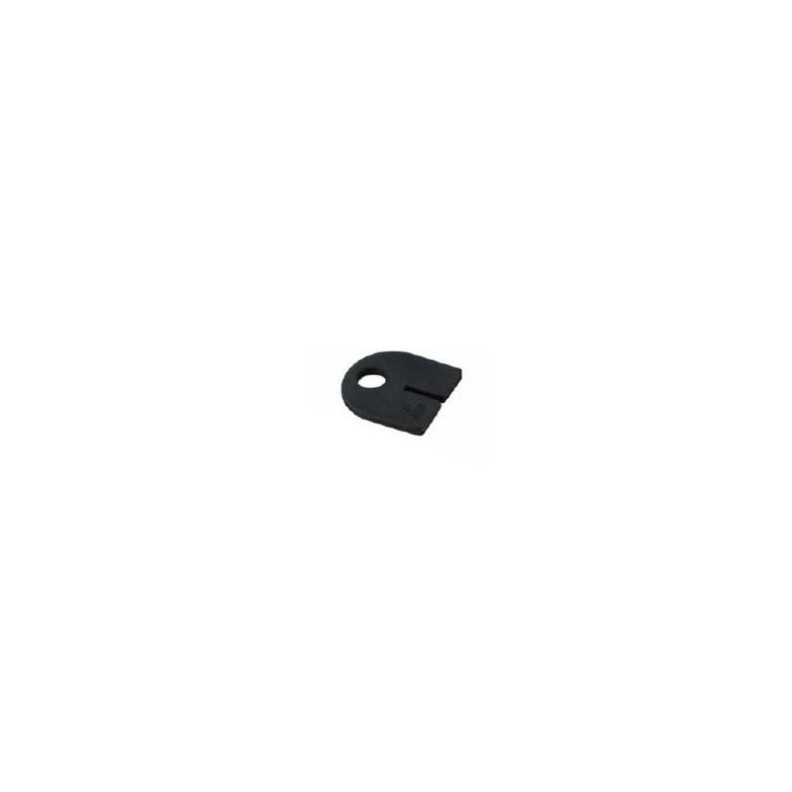

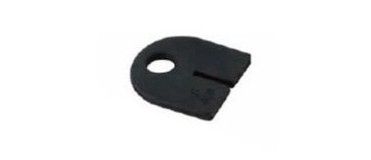

Rubber Inserts:

• CN6450410 Rubber insert, set glass 6,00 mm EPDM
• CN6450420 Rubber insert, set glass 7,52 mm EPDM
• CN6450430 Rubber insert, set glass 8,00 mm EPDM
• CN6450440 Rubber insert, set glass 8,76 mm EPDM
• CN6450450 Rubber insert, set glass 9,52 mm EPDM
• CN6450460 Rubber insert, set glass 10,00 mm EPDM

Technical Characteristics:

Product Code	CN6101424	CN6102424
Material	Zinc	Zinc
Surface	Stainless steel effect	Stainless steel effect
Type	Corner	Corner
Measures	53 x 60 mm	53 x 60 mm
Pipe fitting	42.4 mm / right	42.4 mm / left

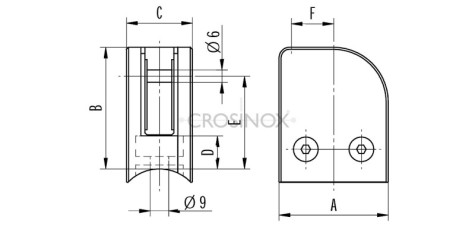

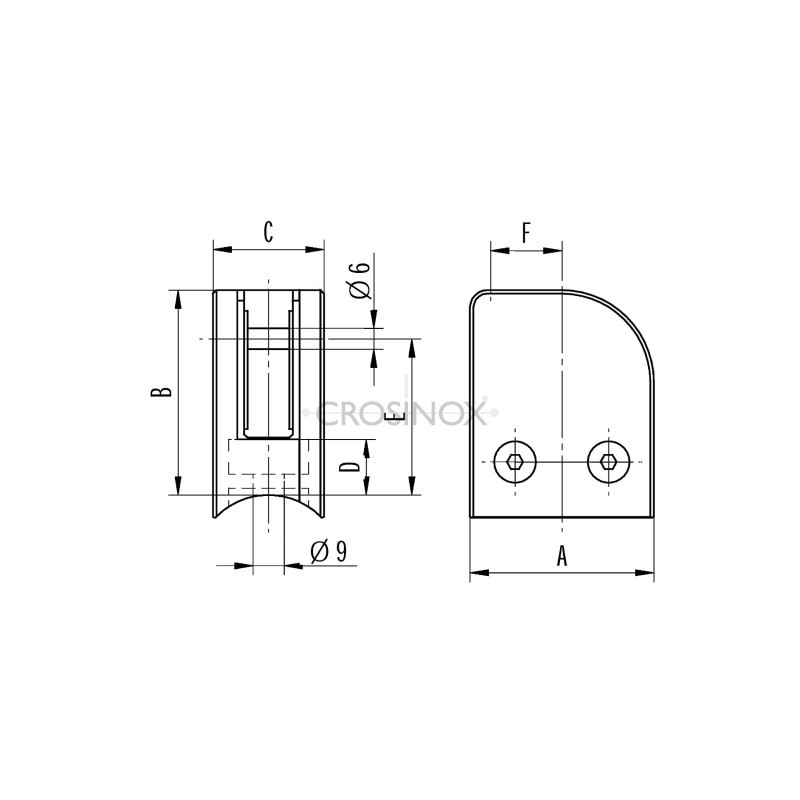

Details	A=53; B=60; C=29; D=16; E=45;	A=53; B=60; C=29; D=16; E=45;
