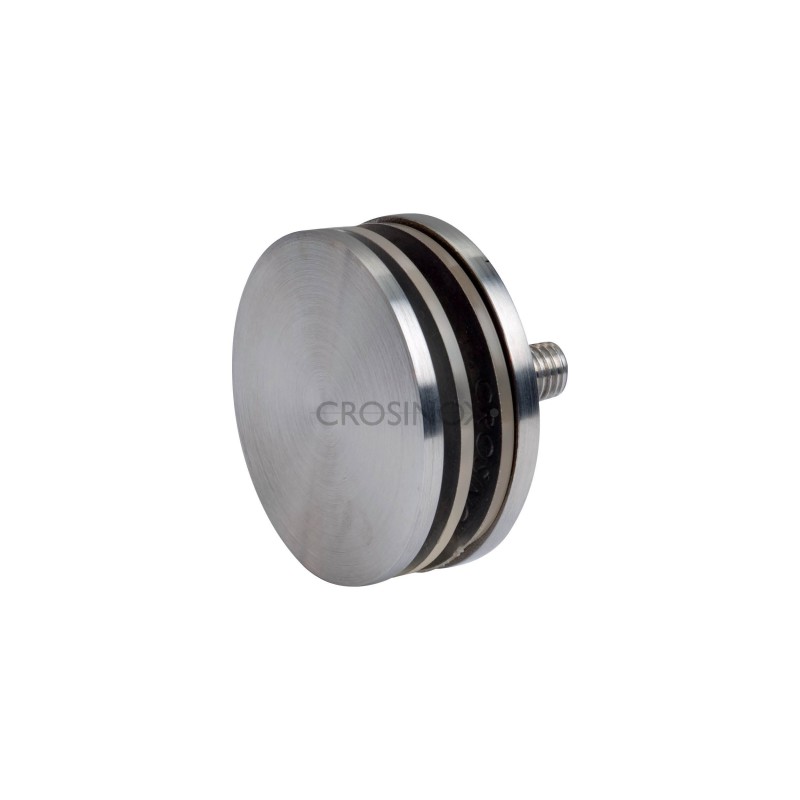

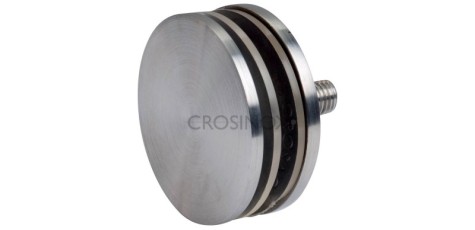

Point Holder

Point Holders:

• CN6500200 Point holder Ø 70 mm, connection straight glass -18 mm V4A, polished

• CN6500210 point holder Ø 70 mm, tube Ø 33.7 mm glass -18 mm V4A, polished

• CN6500220 point holder Ø 70 mm, tube Ø 42.4 mm glass -18 mm V4A, polished

• CN6500230 Point holder Ø 70 mm, tube Ø 48.3 mm glass -18 mm V4A, polished

Technical Characteristics:

Product Code	CN6500200	CN6500210	CN6500220	CN6500230
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin	satin
Type	point holder	point holder	point holder	point holder
Measurments	Ø 70 mm	Ø 70 mm	Ø 70 mm	Ø 70 mm
Glass Thickness	- 18 mm	- 18 mm	- 18 mm	- 18 mm
Pipe fitting	straight	Ø 33,7 mm	Ø 42,4 mm	Ø 48,3 mm
