Glasklemme halbrund

Glass Clamps:

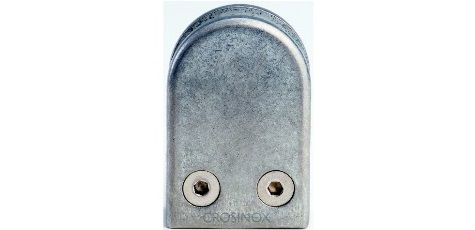

• CN6030000 Glass clamp semicircular, connection straight zinc die-cast
• CN6030424 Glass clamp semicircular, tube Ø 42.4 mm zinc die-cast
• CN6030483 Glass clamp semicircular, tube Ø 48.3 mm zinc die-cast

Rubber Inserts:

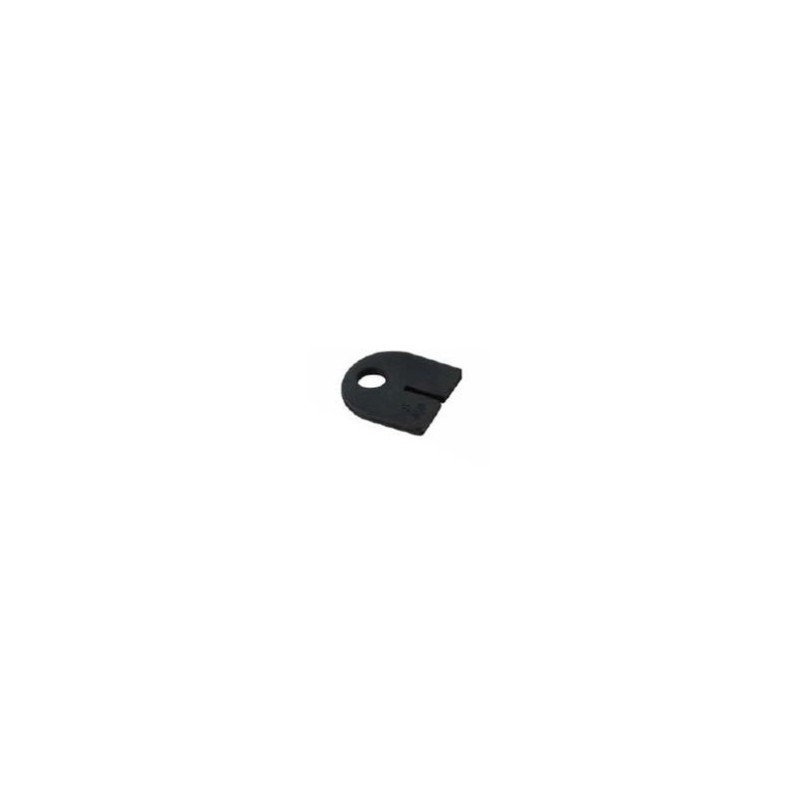

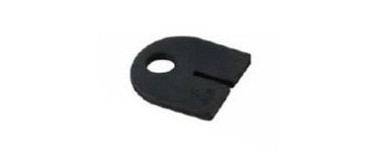

• CN6400510 Rubber insert, set glass 6,00 mm EPDM
• CN6400520 Rubber insert, set glass 7,52 mm EPDM
• CN6400530 Rubber insert, set glass 8,00 mm EPDM
• CN6400540 Rubber insert, set glass 8,76 mm EPDM
• CN6400550 Rubber insert, set glass 9,52 mm EPDM
• CN6400560 Rubber insert, set glass 10.00 mm EPDM

Technical Characteristics:

Product Code	CN6030000	CN6030424	CN6030483
Material	Zinc	Zinc	Zinc
Surface	zinc die-casting	zinc die-casting	zinc die-casting
Type	Half round	Half round	Half round
Measures	45 x 63 mm	45 x 63 mm	45 x 63 mm
Glass Thickness	-	-	-
Pipe fitting	Straight	Ø 42.4 mm	Ø 48.3 mm

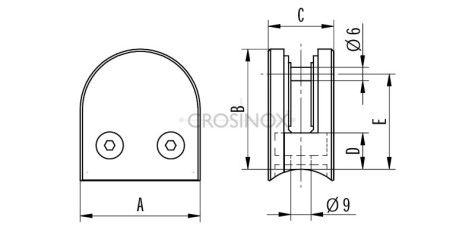

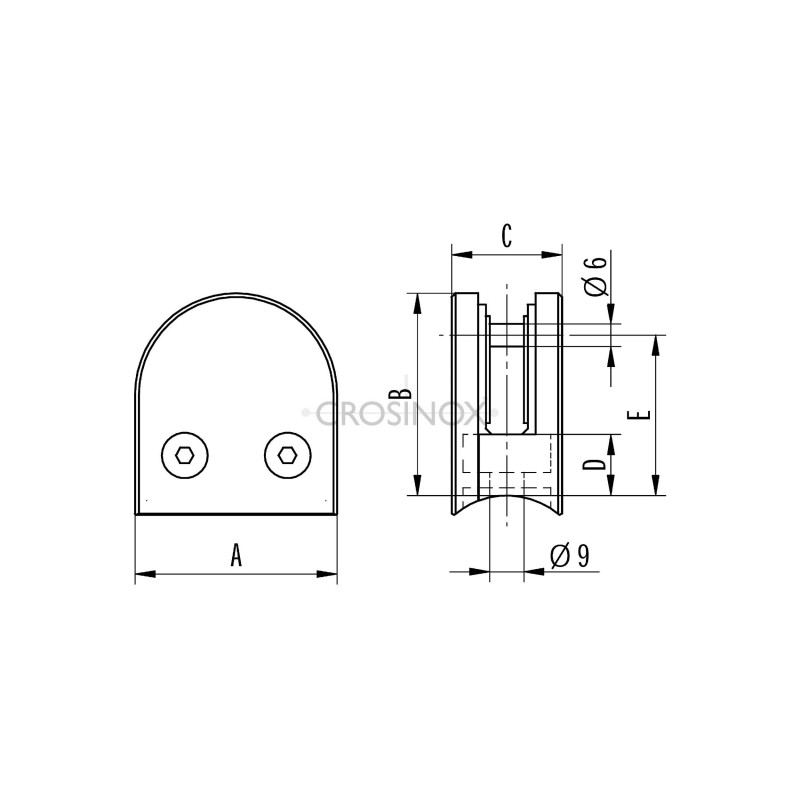

Details	A=45; B=64; C=27,5; D=16; E=49	A=45; B=64; C=27,5; D=16; E=49	A=45; B=64; C=27,5; D=16; E=49
