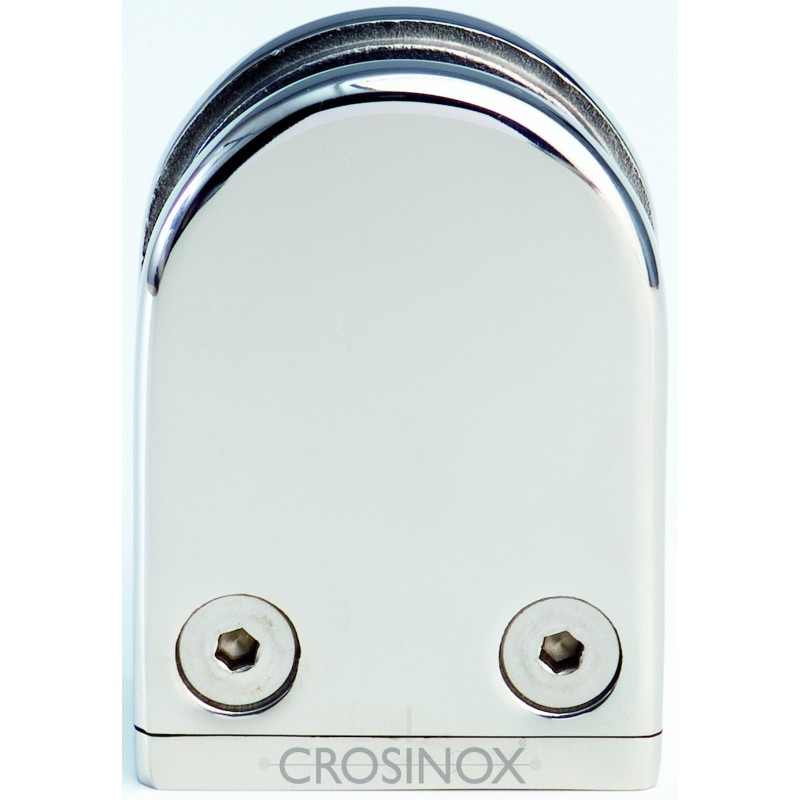

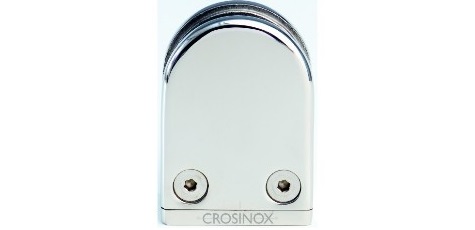

Semicircular-Half Round Glass Clamp

Glass Clamps:

• CN6260000 Glass clamp semicircular, connection straight V4A, high polished

• CN6260381 Glass clamp semicircular, tube Ø 38,1mm V4A, mirror polished

• CN6260424 Glass clamp semicircular, tube Ø 42,4 mm V4A, mirror polished

• CN6260483 Glass clamp semicircular, tube Ø 48.3 mm V4A, high polish

• CN6260508 Glass clamp semicircular, tube Ø 50,8mm V4A, high polish

Rubber Inserts:

• CN6400510 Rubber insert, set glass 6,00 mm EPDM
• CN6400520 Rubber insert, set glass 7,52 mm EPDM
• CN6400530 Rubber insert, set glass 8,00 mm EPDM
• CN6400540 Rubber insert, set glass 8,76 mm EPDM
• CN6400550 Rubber insert, set glass 9,52 mm EPDM
• CN6400560 Rubber insert, set glass 10,00 mm EPDM

Technical Characteristics:

Product Code	CN6260000	CN6260381	CN6260424	CN6260483	CN6260508
Material	AISI 316	AISI 316	AISI 316	AISI 316	AISI 316
Surface	mirror polished	mirror polished	mirror polished	mirror polished	mirror polished
Type	Half round	Half round	Half round	Half round	Half round
Measures	59 x 43 mm	59 x 43 mm	59 x 43 mm	59 x 43 mm	59 x 43 mm
Glass Thickness	-	-	-	-	-
Pipe fitting	Straight	Ø 38.1 mm	Ø 42,4 mm	Ø 48,3 mm	Ø 50,8 mm
Details	A=43; B=59; C=26; D=16; E=45,3	A=43; B=59; C=26; D=16; E=45,3	A=43; B=59; C=26; D=16; E=45,3	A=43; B=59; C=26; D=16; E=45,3	A=43; B=59; C=26; D=16; E=45,3
