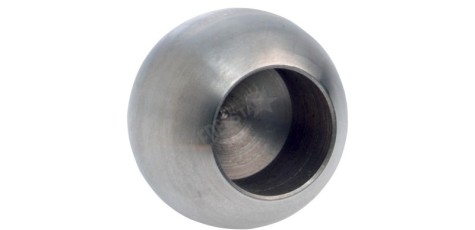

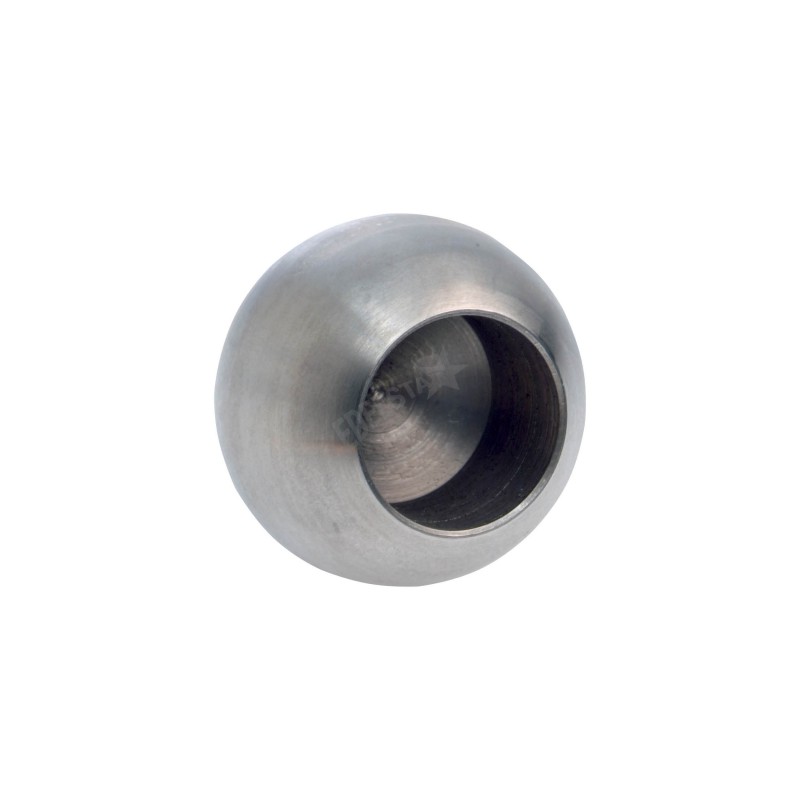

Spheroidal Terminal Ball

Balls:

• 450450 ball, Ø 20 mm, blind hole, for rod Ø 10 mm V2A, polished

• 450500 ball, Ø 20 mm, blind hole, for rod Ø 12 mm V2A, polished

• 450510 ball, Ø 20 mm, blind bore, for rod Ø 14 mm V2A, polished

• 450550 ball, Ø 25 mm, blind hole, for rod Ø 12 mm V2A, polished

• 450600 ball, Ø 25 mm, blind hole, for rod Ø 14 mm V2A, polished

• 450620 ball, Ø 30 mm, blind hole, for rod Ø 12 mm V2A, polished

• 450630 ball, Ø 30 mm, blind bore, for rod Ø 14 mm V2A, polished

Technical Characteristics:

Product Code	450450	450500	450510	450550
Material	AISI 304	AISI 304	AISI 304	AISI 304
Type	massif	massif	massif	massif
Surface	satin	satin	satin	satin

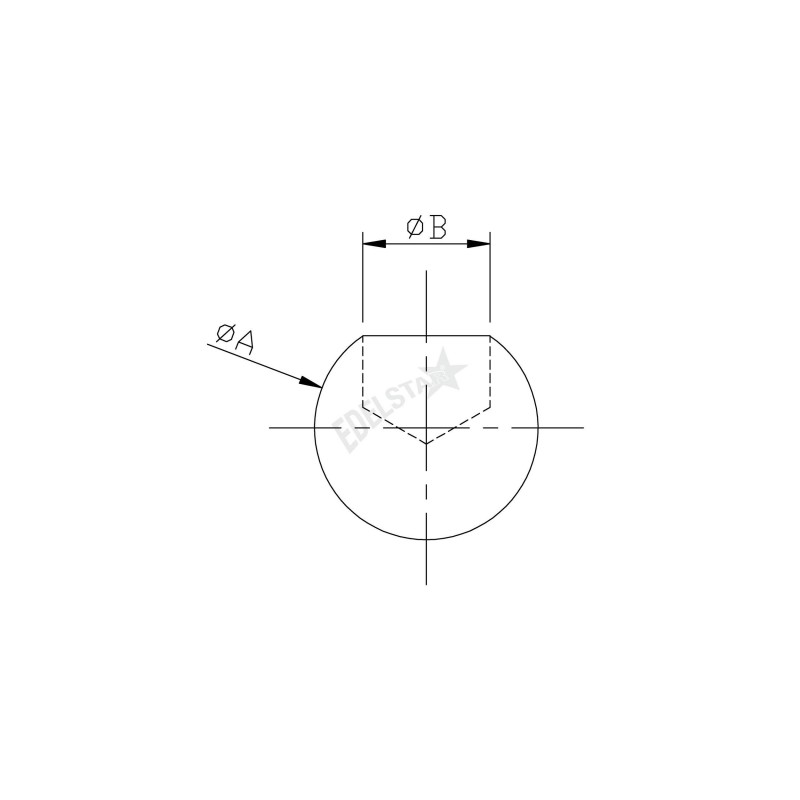

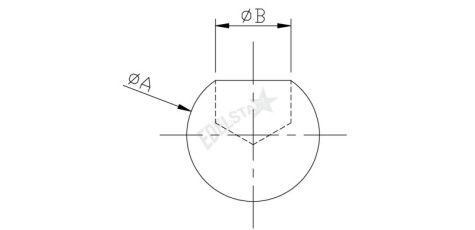

Details	A=20; B=10,2; C=10	A=20; B=12,2; C=10	A=20; B=14,2; C=9	A=25; B=12,2; C=15



















Product Code	450600	450620	450630
Material	AISI 304	AISI 304	AISI 304
Type	massif	massif	massif
Surface	satin	satin	satin
Details	A=25; B=14,2; C=13	A=30; B=12,2; C=19	A=30; B=14,2; C=19
