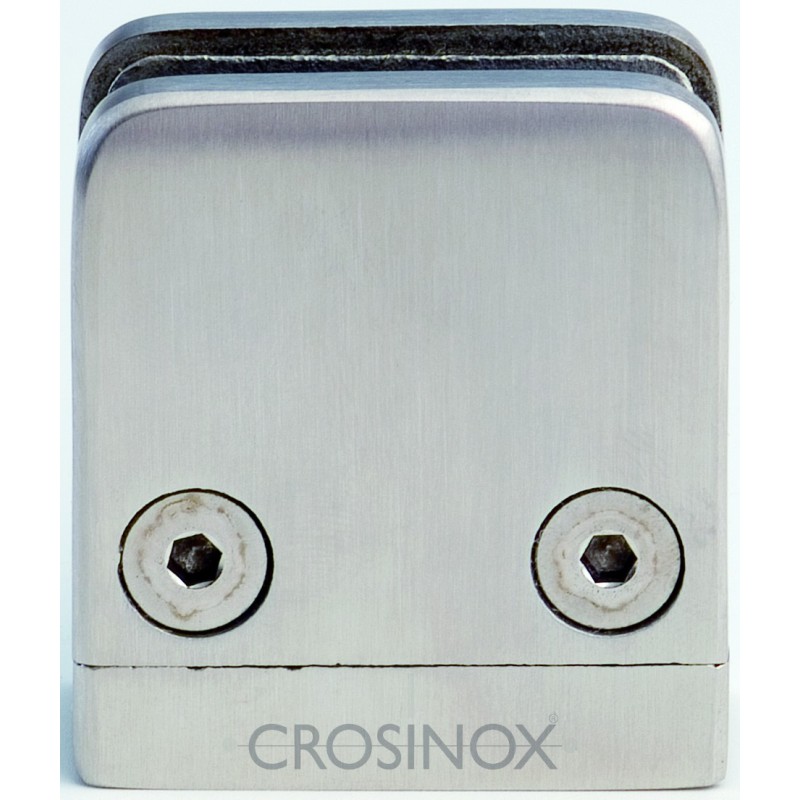

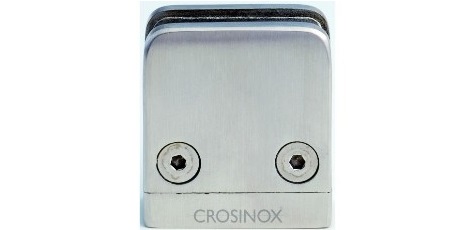

Square Glass Clamp

Glass Clamps:

• CN6330000 Glass clamp square, conn. straight V4A, high polished

• CN6330337 Glass clamp square, tube Ø 33,7 mm V4A, high polished

• CN6330381 Glass clamp square, tube Ø 38,1mm V4A, high polished

• CN6330424 Glass clamp square, tube Ø 42,4 mm V4A, high polished

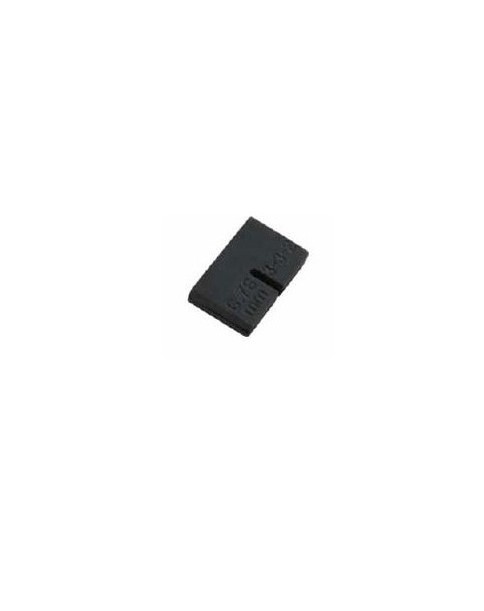

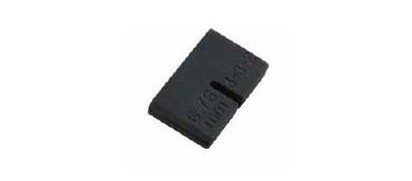

Rubber Inserts:

• CN6400210 Rubber insert, set glass 6,00 mm EPDM
• CN6400220 Rubber insert, set glass 7,52 mm EPDM
• CN6400230 Rubber insert, set glass 8,00 mm EPDM
• CN6400240 Rubber insert, set glass 8,76 mm EPDM
• CN6400250 Rubber insert, set glass 9,52 mm EPDM
• CN6400260 Rubber insert, set glass 10.00 mm EPDM

Technical Characteristics:

Product Code	CN6330000	CN63300337	CN6330381	CN6330424
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	mirror polished	mirror polished	mirror polished	mirror polished
Type	square glass clamp	square glass clamp	square glass clamp	square glass clamp
Measures	43 x 43 mm	43 x 43 mm	43 x 43 mm	43 x 43 mm
Pipe fitting	Straight	Ø 33.7 mm	Ø 38.1 mm	Ø 42.4 mm

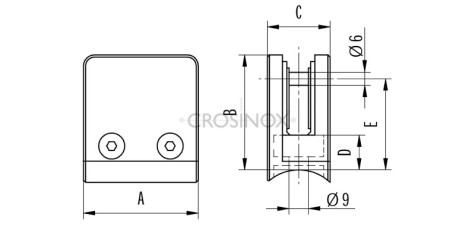

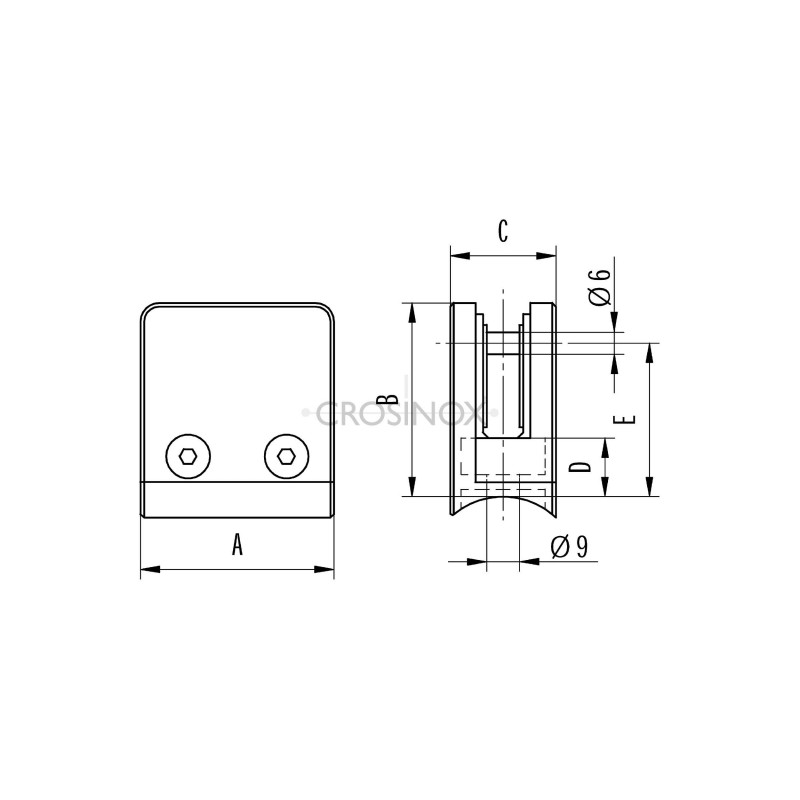

Details	A=43; B=43; C=24; D=16; E=31,5	A=43; B=43; C=24; D=16; E=31,5	A=43; B=43; C=24; D=16; E=31,5	A=43; B=43; C=24; D=16; E=31,5
