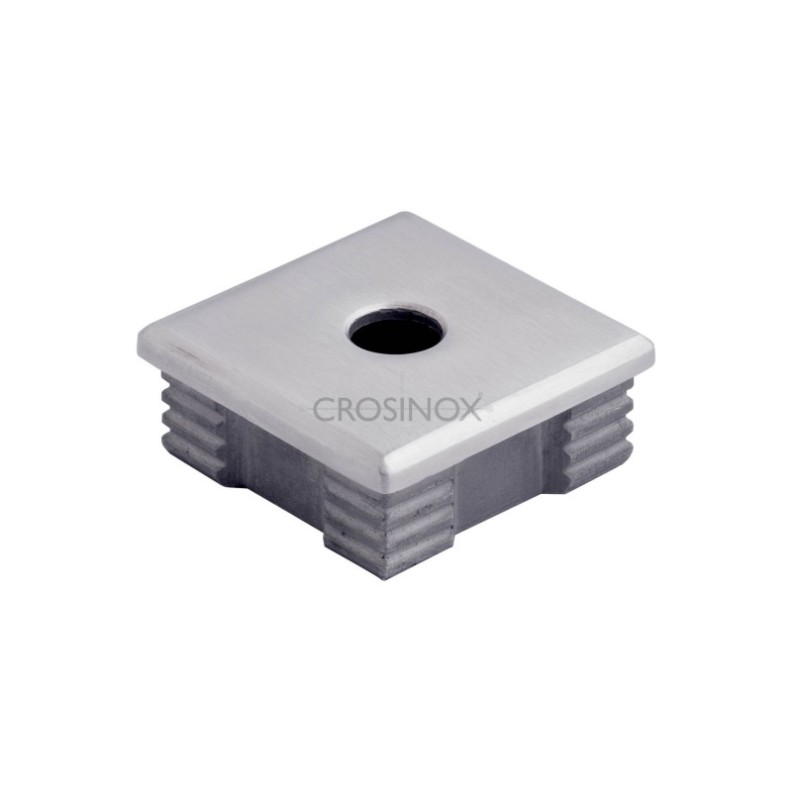

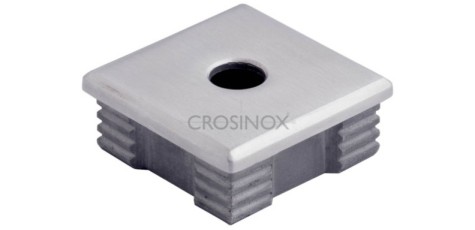

Square Cap - Terminal

Caps:

• CN3910030 cap, tube 30 x 30 x 2.0, drill. 12.2 mm solid V4A, polished

• CN3910040 cap, tube 40 x 40 x 2.0, drill. 12.2 mm solid V4A, polished

• CN3910050 cap, tube 50 x 50 x 2.0, drill. 12.2 mm solid V4A, polished

Technical Characteristics:

Product Code	CN3910030	CN3910040	CN3910050
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Dimensions	30 x 30 x 2,0 mm	40 x 40 x 2,0 mm	50 x 50 x 2,0 mm
Type	massif	massif	massif

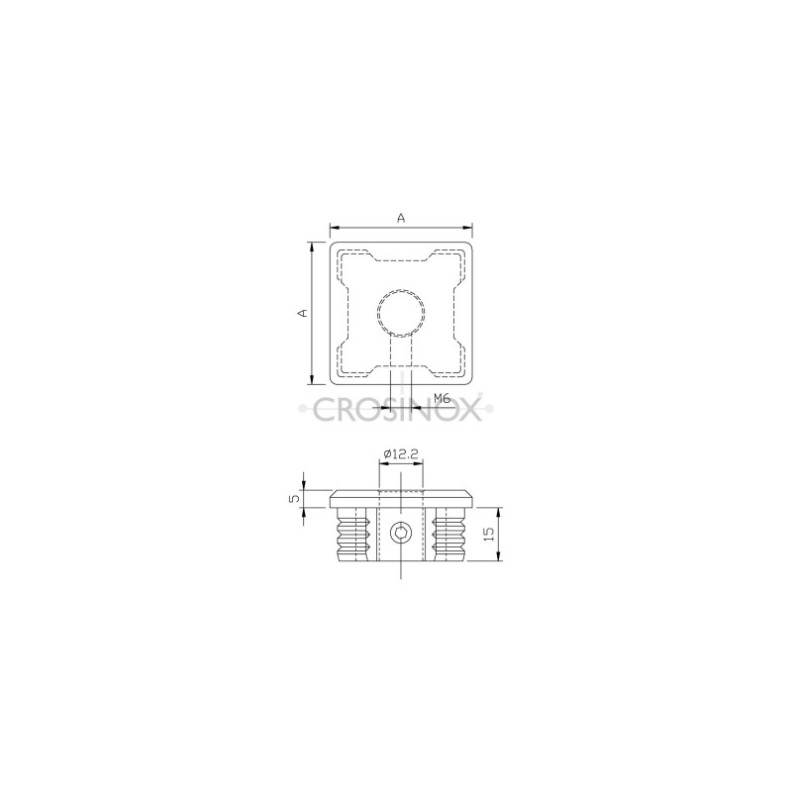

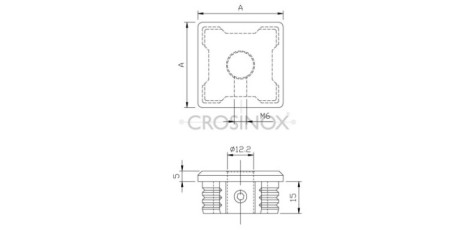

Details	A=30	A=40	A=50
