Joint with flange

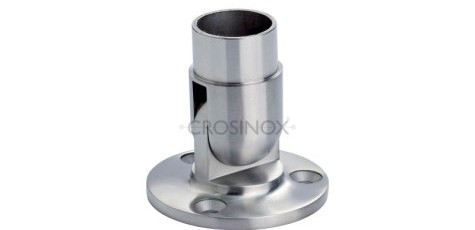

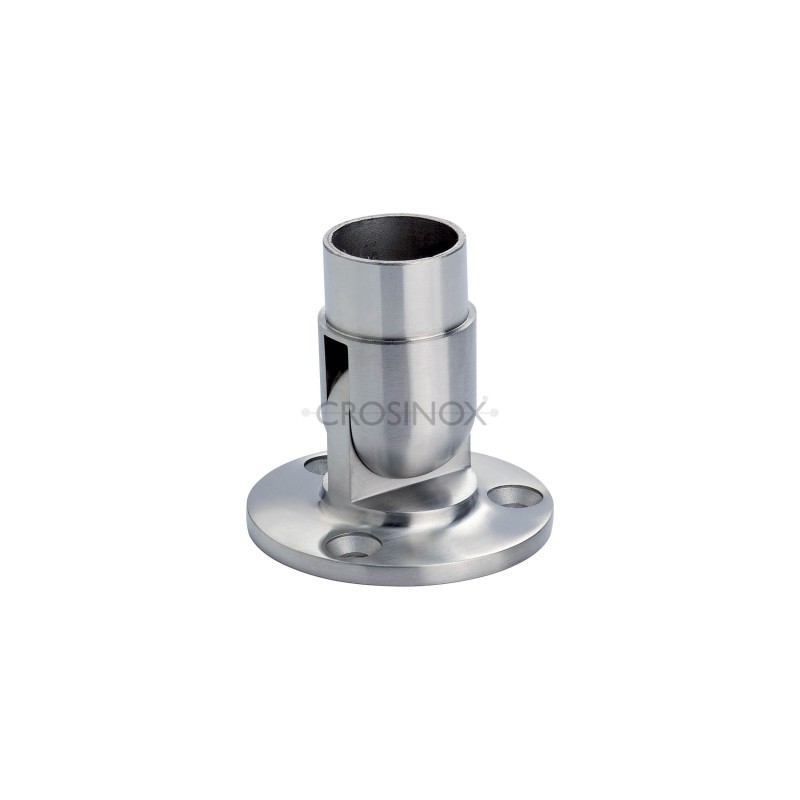

Joints with flange:

• CN4580520 Joint with flange, tube Ø 33,7 x 2,0 mm V4A, polished
• CN4580530 Joint with flange, tube Ø 42,4 x 2,0 mm V4A, polished
• CN4580540 Joint with flange, tube Ø 48,3 x 2,0 mm V4A, polished

Technical Characteristics for  CN1200100, CN1200110:

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

Details:

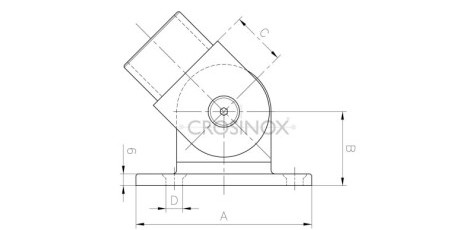

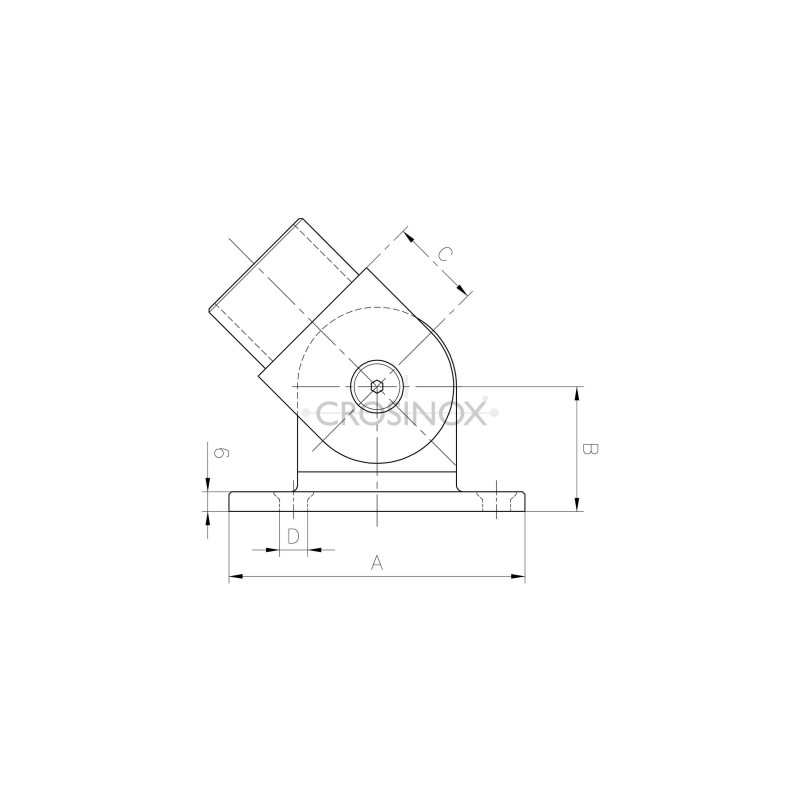

• CN4580520 --> A=Ø 71; B=30; C=20,5; D=Ø 6.5
• CN4580530 --> A=Ø 84; B=36; C=24,5; D=Ø 8.5
• CN4580540 --> A=Ø 90; B=38; C=27,5; D=Ø 8.5
