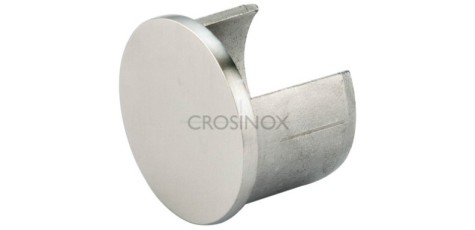

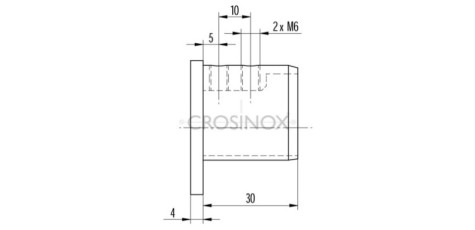

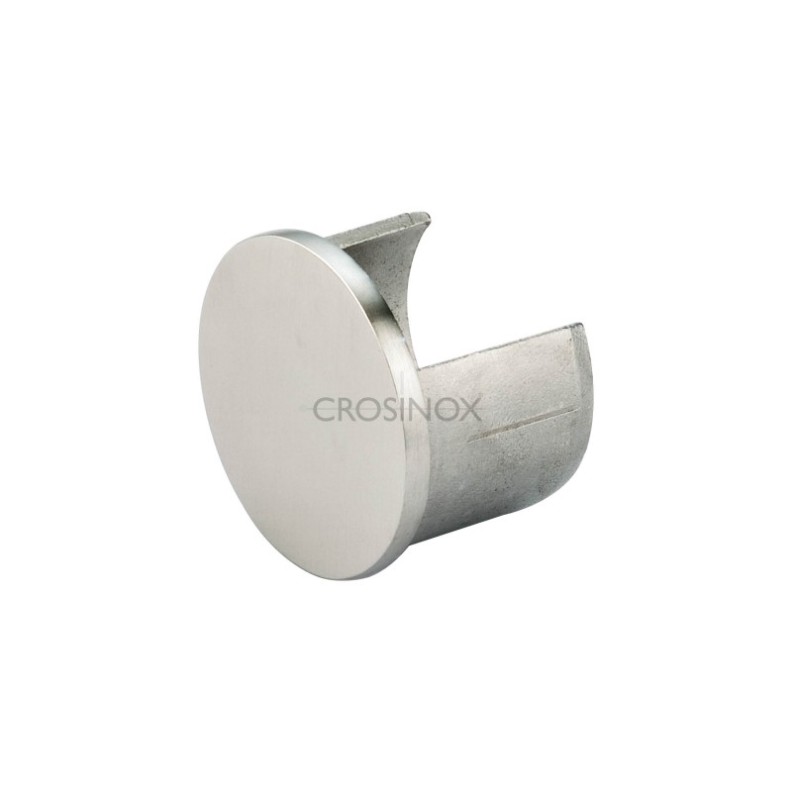

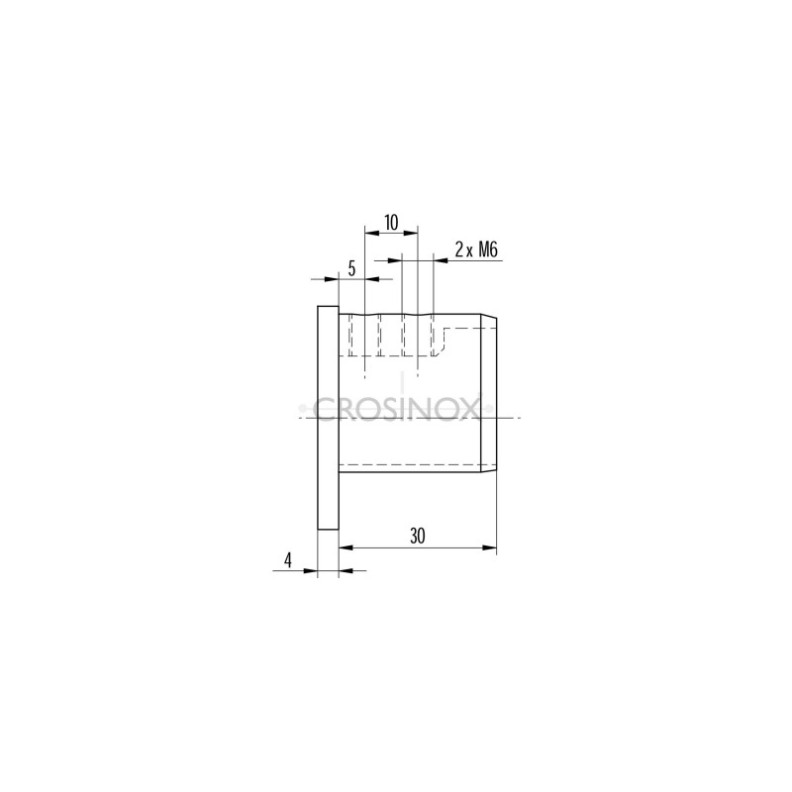

Round Cap - Terminal

Caps:

• CN1100100 cap, grooved tube Ø 42.4 mm V4A, polished

• CN1100110 cap, grooved tube Ø 48.3 mm V4A, polished

• CN2503424 cap, grooved tube Ø 42,4 mm V4A, high polished

• CN2503483 cap, grooved tube Ø 48.3 mm V4A, high polished

Technical Characteristics:

Product Code	CN2503100	CN2503110	CN2503424	CN2503483
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	mirror polished	mirror polished
Dimensions	42,4 x 1,5 mm	48,3 x 1,5 mm	42,4 x 1,5 mm	48,3 x 1,5 mm
