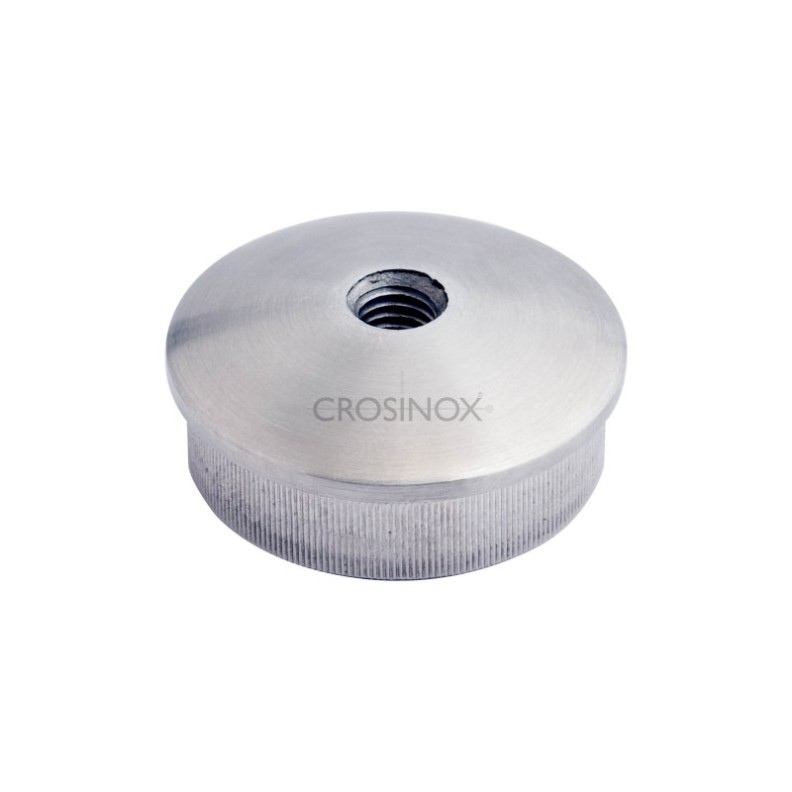

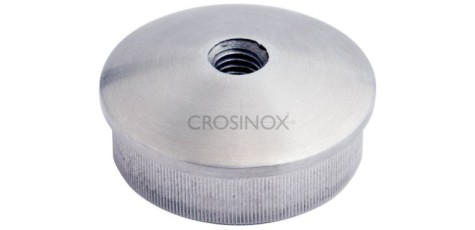

Round Cap - Terminal

Caps:

• CN3133720 Cap with knurl, tube Ø 33,7 x 2,0 mm solid V2A, polished

• CN3133726 Cap with knurl, tube Ø 33,7 x 2,6 mm solid V2A, polished

• CN3142420 Cap with knurl, tube Ø 42,4 x 2,0 mm solid V2A, polished

• CN3142426 Cap with knurl, tube Ø 42,4 x 2,6 mm solid V2A, polished

• CN3148320 Cap with knurl, tube Ø 48.3 x 2.0 mm solid V2A, polished

• CN3148326 Cap with knurl, tube Ø 48.3 x 2.6 mm solid V2A, polished

• CN3151000 Cap with knurl, tube Ø 33.7 x 2.0 mm solid V2A, polished

• CN3151100 Cap with knurl, tube Ø 42.4 x 2.0 mm solid V2A, polished

Technical Characteristics:

Product Code	CN3133720	CN3133726	CN3142420	CN3142426
Material	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin
Type	massif	massif	massif	massif

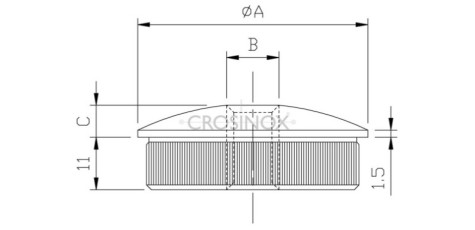

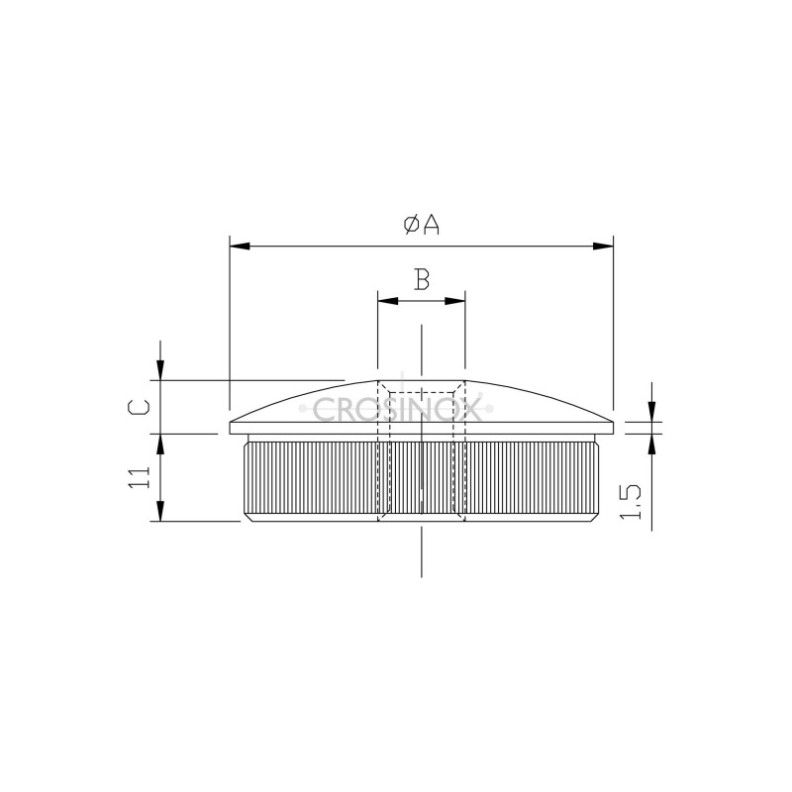

Details	A=33,7 x 2,0 mm ; B=M8; C=6	A=33,7 x 2,6 mm; B=M8; C=6	A=42,4 x 2,0 mm; B=M8; C=7	A=42,2 x 2,6 mm; B=M8; C=7









Product Code	CN3148320	CN3148326	CN3151000	CN3151100
Material	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin
Type	massif	massif	massif	massif
Details	A=48,3 x 2,0 mm; B=M8; C=7	A=48,3 x 2,6 mm; B=M8; C=7	A=33,7 x 2,0 mm ; B=12,2; C=6	A=42,4 x 2,0 mm; B=12,2; C=7
