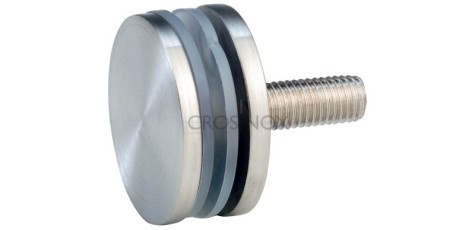

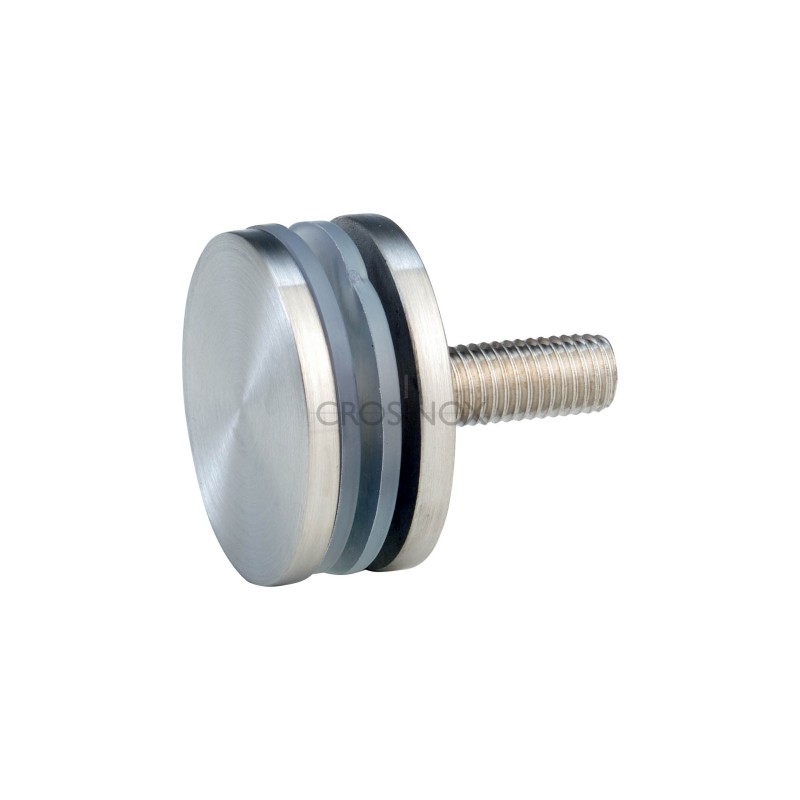

Point Holder

Point Holders:

• CN6500100 Plate holder, connection straight glass -18 mm V2A, polished

• CN6500110 Plate holder, tube Ø 33.7 mm glass -18 mm V2A, polished

• CN6500120 Plate holder, tube Ø 42.4 mm glass -18 mm V2A, polished

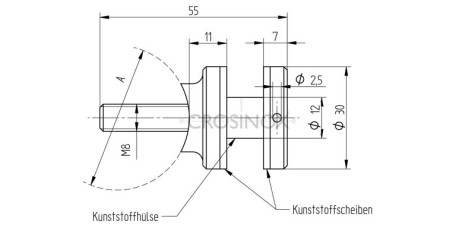

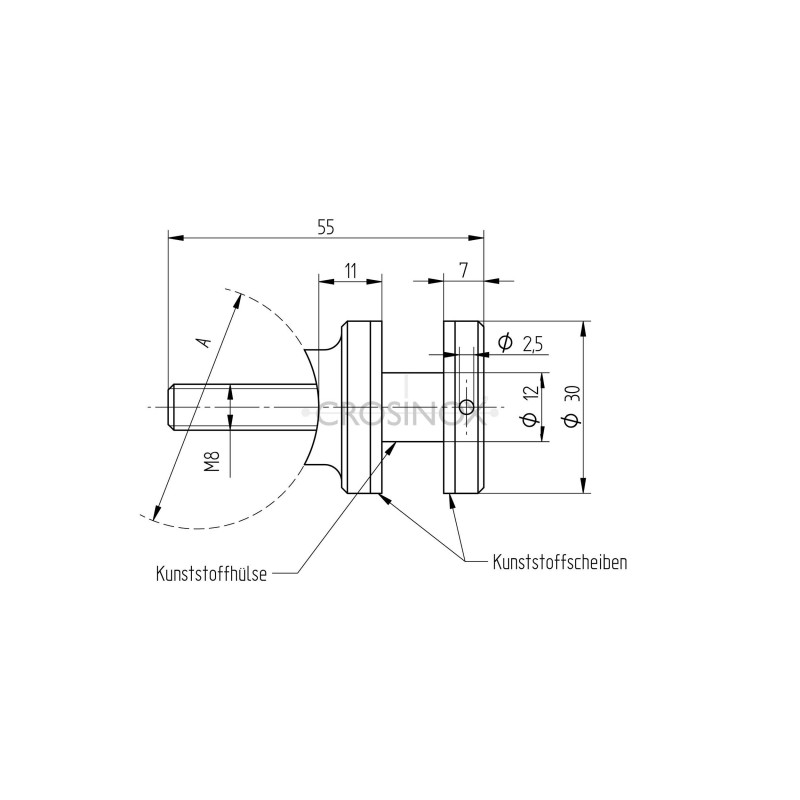

Technical Characteristics:

Product Code	CN6500100	CN6500110	CN6500120
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Type	point holder	point holder	point holderMe
Measurments	Ø 30 mm	Ø 30 mm	Ø 30 mm
Glass Thickness	- 18 mm	- 18 mm	- 18 mm
Pipe fitting	straight	Ø 33,7 mm	Ø 42,4 mm
