Semicircular-Half Round Glass Clamp

Glass Clamps:

• 788000 Glass clamp semicircular, connection straight V2A, polished
• 788337 Glass clamp semicircular, tube Ø 33.7 mm V2A, polished
• 788424 Glass clamp semicircular, tube Ø 42.4 mm V2A, polished
• 788483 Glass clamp semicircular, tube Ø 48.3 mm V2A, polished

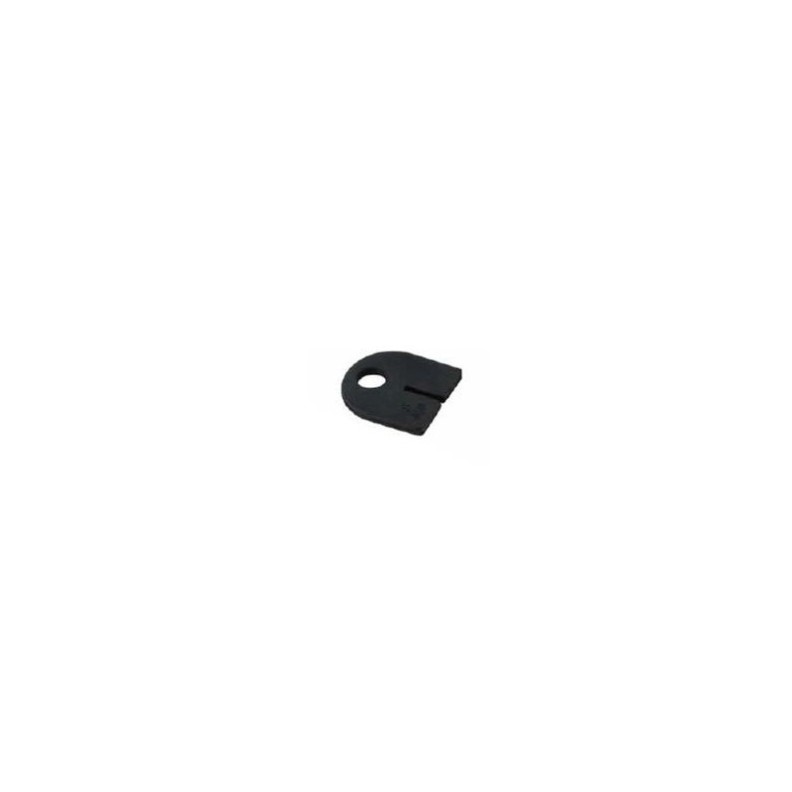

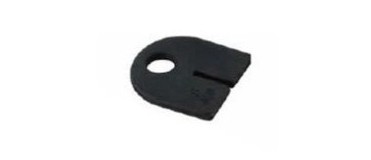

Rubber Inserts:

• 970600 Rubber insert, set glass 6,00 mm EPDM
• 970800 Rubber insert, set glass 8,00 mm EPDM
• 970876 Rubber insert, set glass 8,76 mm EPDM
• 971000 Rubber insert, set glass 10,00 mm EPDM
• 971076 Rubber insert, set glass 10,76 mm EPDM
• 971152 Rubber insert, set glass 11,52 mm EPDM

Technical Characteristics:

Product Code	788000	788337	788424	788483
Material	AISI 304	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin	satin
Type	Half round	Half round	Half round	Half round
Measures	45 x 64 mm	45 x 64 mm	45 x 64 mm	45 x 64 mm
Glass Thickness	-	-	-	-
Pipe fitting	Straight	Ø 33,7 mm	Ø 42.4	Ø 48.3
Details	A=45; B=63; C=28; D=15; E=48	A=45; B=63; C=28; D=15; E=48	A=45; B=63; C=28; D=15; E=48	A=45; B=63; C=28; D=15; E=48
