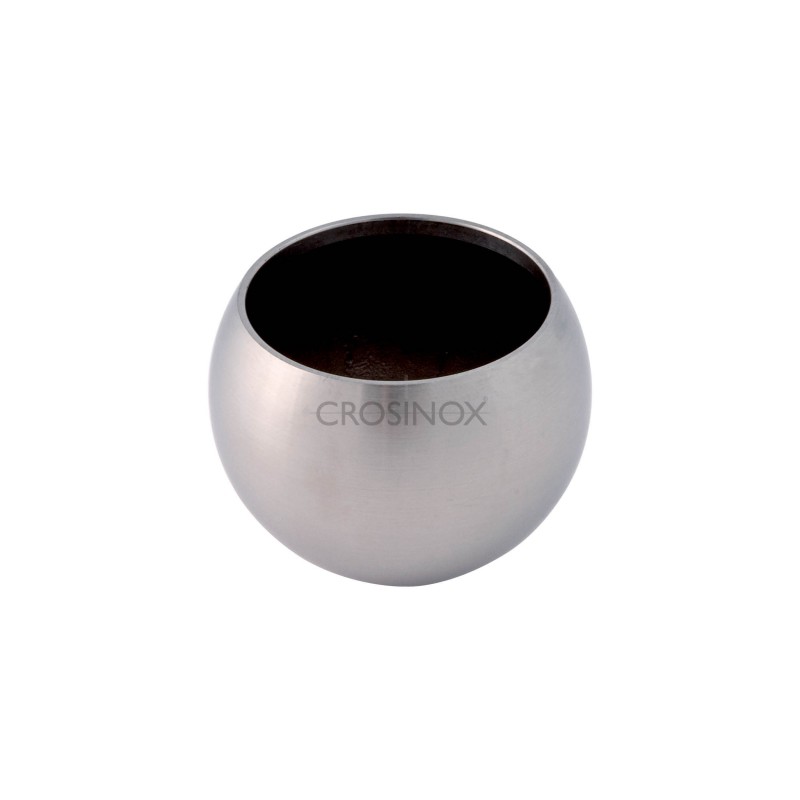

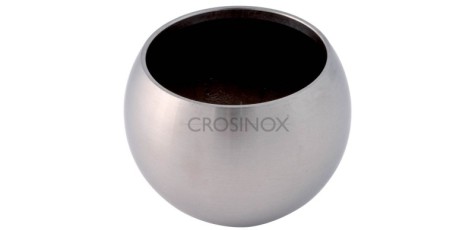

Spheroidal Cap Ring

Balls:

• CN7500100 Tube closure ball, tube Ø 33.7 mm V4A, polished

• CN7500110 Tube closure ball, tube Ø 42.4 mm V4A, polished

• CN7500120 Tube closure ball, tube Ø 48.3 mm V4A, polished

• CN7500130 Tube closure ball, tube Ø 60.3 mm V4A, polished

Technical Characteristics:

Product Code	CN7500100	CN7500110	CN7500120	CN7500130
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin	satin

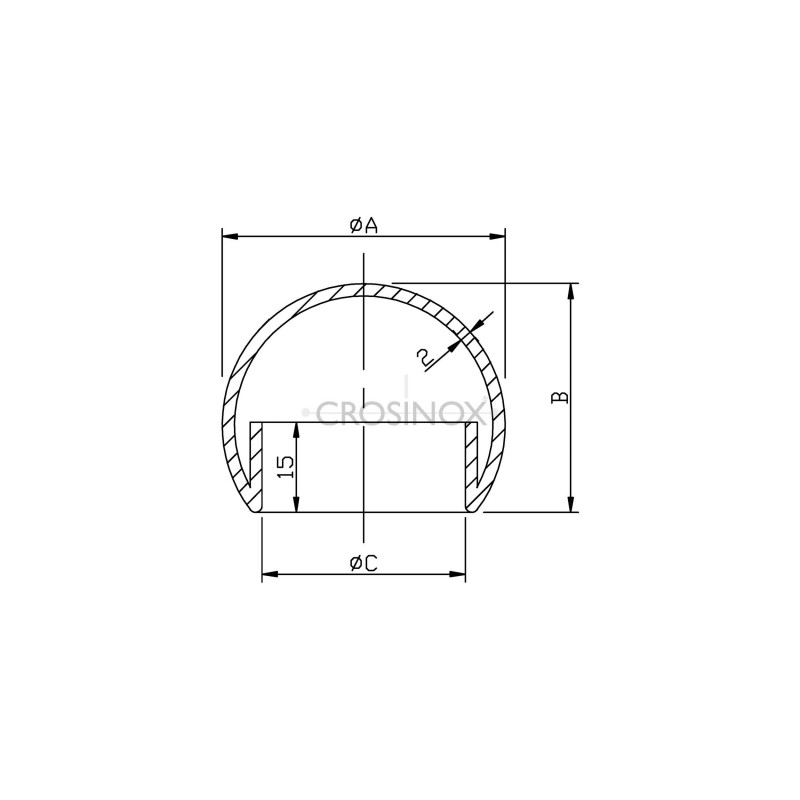

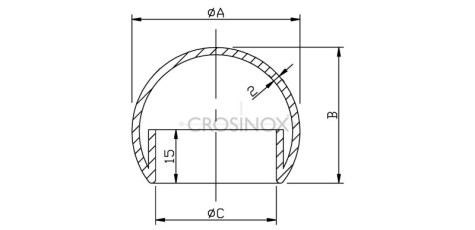

Details	A=47; B=38; C=33,7	A=55; B=44; C=42,4	A=64,5; B=52; C=48,3	A=78; B=62; C=60,3
