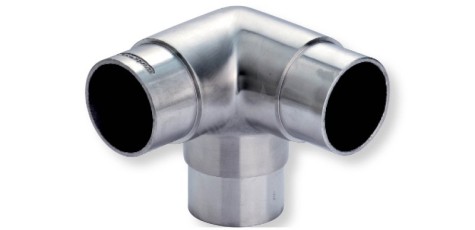

Corner Connector

Corner connectors:

• 020400 Corner connector, pipe Ø 33,7 x 2,0 mm V2A, polished
• 020500 Corner connector, pipe Ø 42,4 x 2,0 mm V2A, polished
• 020600 Corner connector, pipe Ø 48,3 x 2,0 mm V2A, polished
• CN4592110 Corner connector, pipe Ø 33,7 x 2,0 mm V4A, polished
• CN4592300 Corner connector, pipe Ø 42,4 x 2,0 mm V4A, polished
• CN4592400 Corner connector, pipe Ø 48,3 x 2,0 mm V4A, polished

Technical Characteristics for 020400, 020500 020600 :

• Material: AISI 304
• FInish: Satin
• Dimensions: see above

Technical Characteristics for CN4592110, CN4592300,  CN4592400 :

• Material: AISI 316
• FInish: Satin
• Dimensions: see above

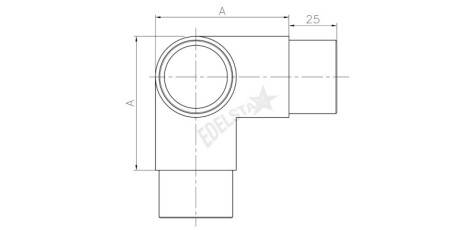

Details:

• 020400 -->A=18; B=41
• 020500 -->A=20; B=51
• 020600 -->A=22; B=62
• CN4592110 -->A=25; B=55
• CN4592300 -->A=25; B=65
• CN4592400 -->A=25; B=75
