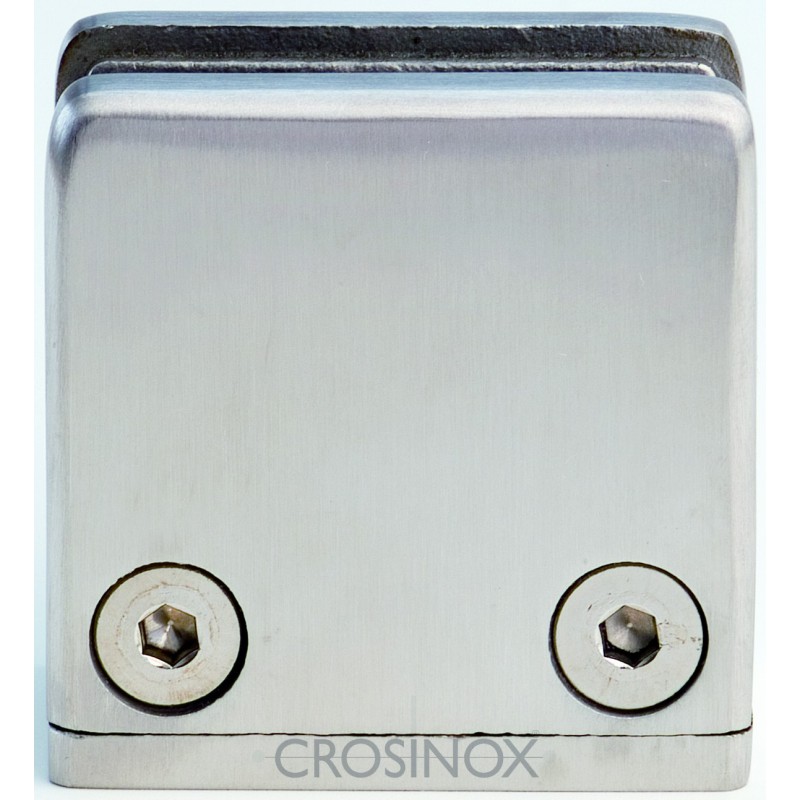

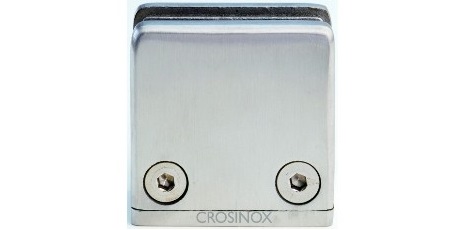

Square Glass Clamp

Glass Clamps:

• CN6340000 Glass clamp square, connection straight V4A, high polished

• CN6340424 Glass clamp square, tube Ø 42,4 mm V4A, high polished

• CN6340483 Glass clamp square, tube Ø 48.3 mm V4A, high polished

• CN6340508 Glass clamp square, tube Ø 50,8 mm V4A, high polished

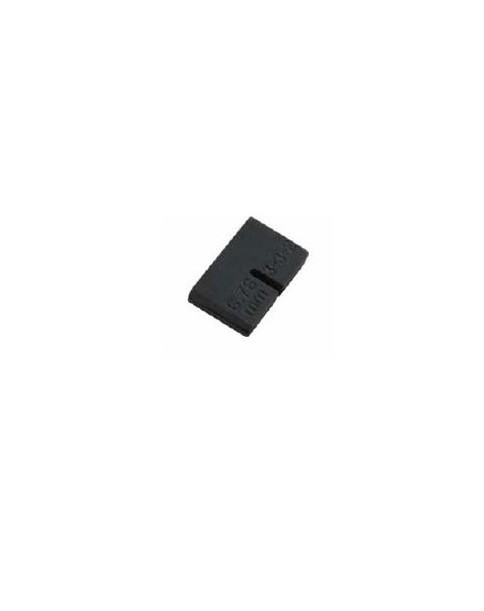

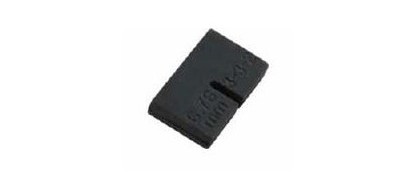

Rubber Inserts:

• CN6400790 Rubber insert, set glass 9,52 mm EPDM
• CN6400800 rubber insert, set glass 10,00 mm EPDM
• CN6400810 Rubber insert, set glass 10,76 mm EPDM
• CN6400820 Rubber insert, set glass 11,52 mm EPDM
• CN6400830 Rubber insert, set glass 12,00 mm EPDM
• CN6400840 rubber insert, set glass 12,76 mm EPDM

Technical Characteristics:

Product Code	CN6340000	CN6340424	CN6340483	CN6340508
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	mirror polished	mirror polished	mirror polished	mirror polished
Type	square glass clamp	square glass clamp	square glass clamp	square glass clamp
Measures	54 x 54 mm	54 x 54 mm	54 x 54 mm	54 x 54 mm
Pipe fitting	Straight	Ø 42.4 mm	Ø 48.3 mm	Ø 50.8 mm

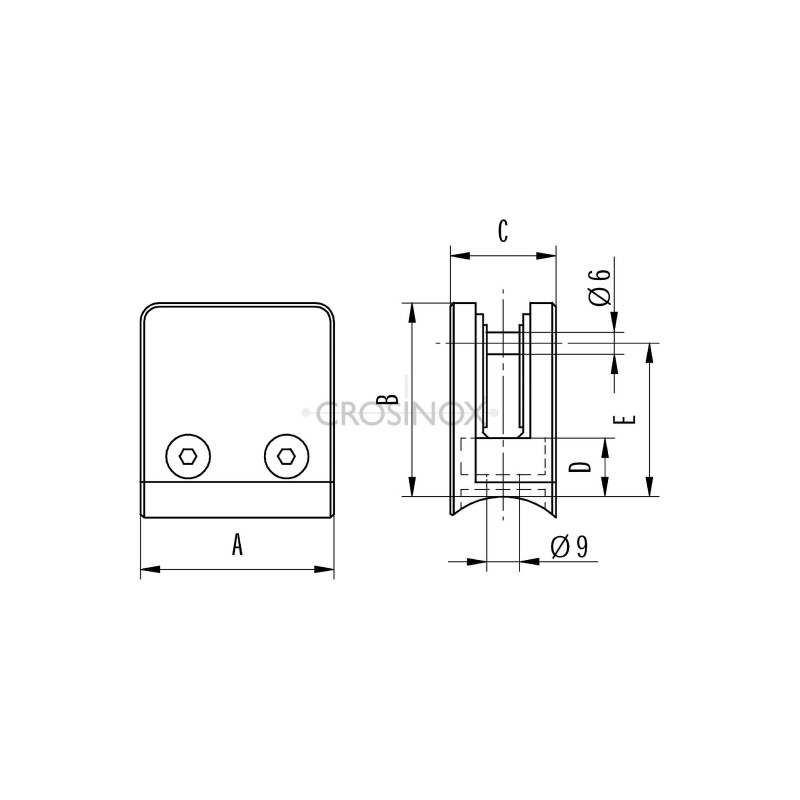

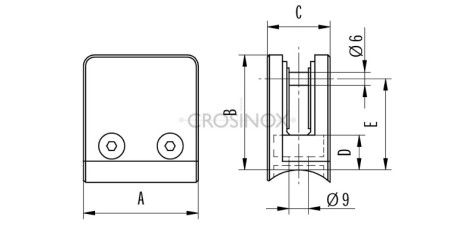

Details	A=54; B=54; C=33; D=17; E=45	A=54; B=54; C=33; D=17; E=45	A=54; B=54; C=33; D=17; E=45	A=54; B=54; C=33; D=17; E=45
