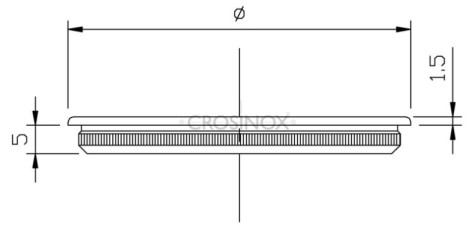

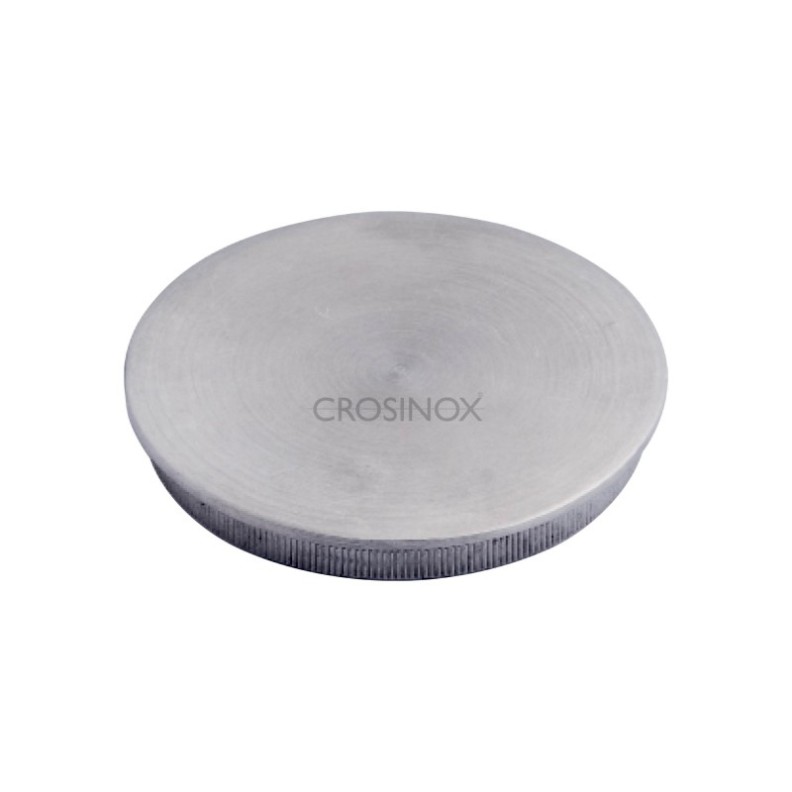

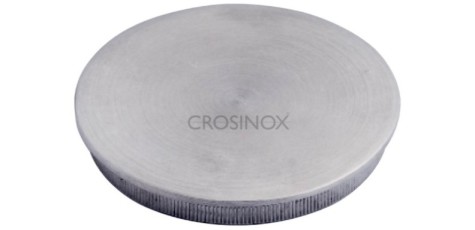

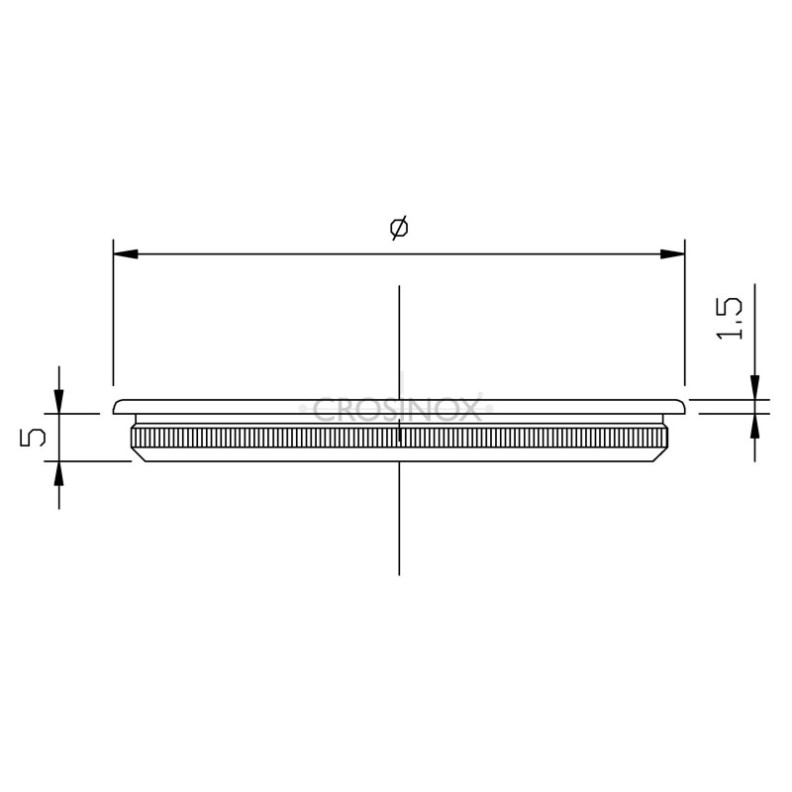

Round Cap - Terminal

Caps:

• CN2912010 cap with knurl, tube Ø 12,0 x 1,0 mm solid V2A, polished

• CN2916010 cap with knurl, tube Ø 16,0 x 1,0 mm solid V2A, polished

• CN2921320 cap with knurl, tube Ø 21,3 x 2,0 mm solid V2A, polished

• CN2926920 cap with knurl, tube Ø 26,9 x 2,0 mm solid V2A, polished

• CN2930015 cap with knurl, tube Ø 30,0 x 1,5 mm solid V2A, polished

• CN2933720 cap with knurl, tube Ø 33,7 x 2,0 mm solid V2A, polished

• CN2933726 cap with knurl, tube Ø 33,7 x 2,6 mm solid V2A, polished

• CN2938115 cap with knurl, tube Ø 38,1 x 1,5 mm solid V2A, polished

• CN2940015 cap with knurl, tube Ø 40,0 x 1,5 mm solid V2A, polished

• CN2940020 cap with knurl, tube Ø 40,0 x 2,0 mm solid V2A, polished

• CN2942420 cap with knurl, tube Ø 42,4 x 2,0 mm solid V2A, polished

• CN2942426 cap with knurl, tube Ø 42,4 x 2,6 mm solid V2A, polished

• CN2948320 cap with knurl, tube Ø 48.3 x 2.0 mm solid V2A, polished

• CN2948326 cap with knurl, tube Ø 48.3 x 2.6 mm solid V2A, polished

• CN2960320 cap with knurl, tube Ø 60,3 x 2,0 mm solid V2A, polished

Technical Characteristics:

Product Code	CN2912010	CN2916010	CN2921320	CN2926920	CN2930015
Material	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
Dimensions	Ø 12,0 x 1,0 mm	Ø 16,0 x 1,0 mm	Ø 21,3 x 2,0 mm	Ø 26,9 x 2,0 mm	Ø 30,0 x 1,5 mm
Surface	satin	satin	satin	satin	satin
Type	massif	massif	massif	massif	massif









Product Code	CN2933720	CN2933726	CN2938115	CN2940015	CN2940020
Material	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
Dimensions	Ø 33,7 x 2,0  mm	Ø 33,7 x 2,6  mm	Ø 38,1 x 1,5 mm	Ø 40,0 x 1,5 mm	Ø 40,0 x 2,0 mm
Surface	satin	satin	satin	satin	satin
Type	massif	massif	massif	massif	massif









Product Code	CN2942420	CN2942426	CN2948320	CN2948326	CN2960320
Material	AISI 304	AISI 304	AISI 304	AISI 304	AISI 304
Dimensions	Ø 42,4 x 2,0 mm	Ø 42,4 x 2,6 mm	Ø 48,3 x 2,0 mm	Ø 48,3 x 2,6 mm	Ø 60,3 x 2,0 mm
Surface	satin	satin	satin	satin	satin
Type	massif	massif	massif	massif	massif
