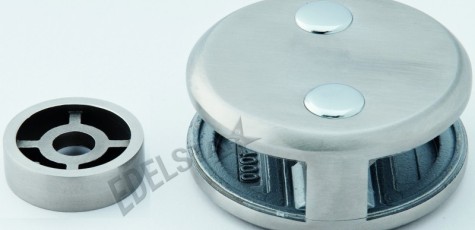

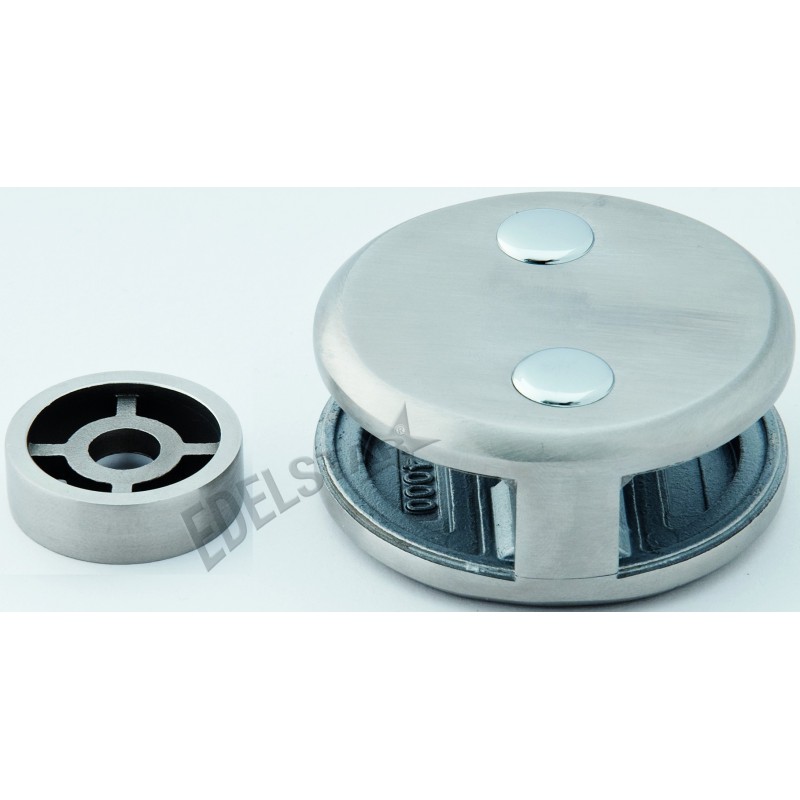

Round Glass Clamp

Glass Clamps:

• 674000 Glass clamp round, connection straight V2A, polished

• 674424 Glass clamp round, pipe Ø 42.4 mm V2A, polished

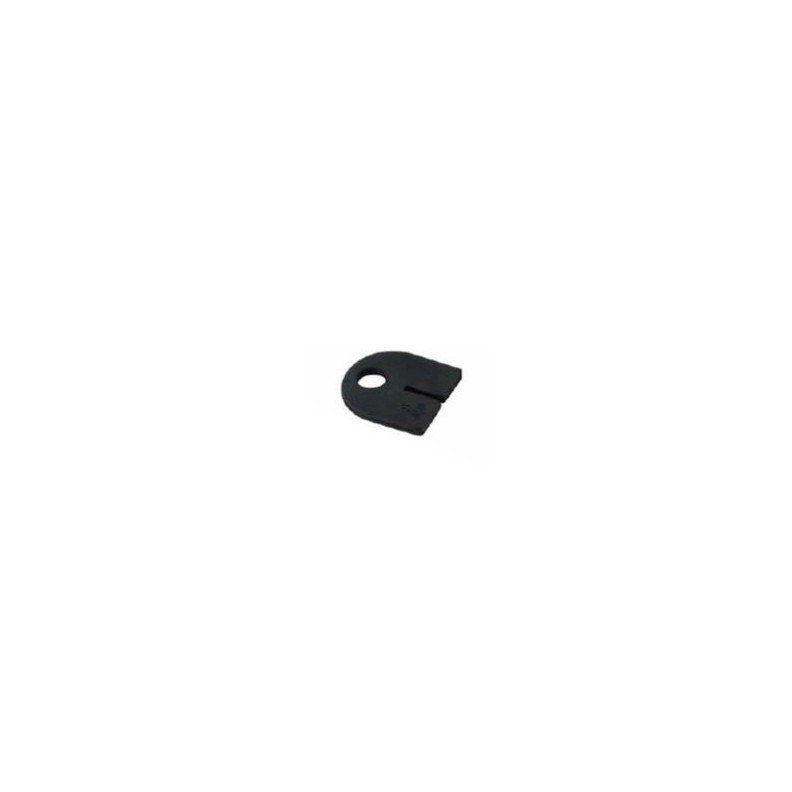

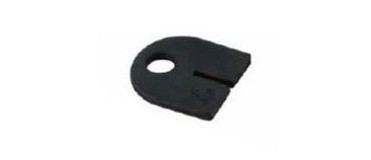

Rubber Inserts:

• 992010 Rubber insert, set glass 8,00 mm EPDM
• 992020 Rubber insert, set glass 8,76 mm EPDM
• 992030 Rubber insert, set glass 10,00 mm EPDM
• 992040 Rubber insert, set glass 10,76 mm EPDM
• 992050 Rubber insert, set glass 12,00 mm EPDM
• 992060 Rubber insert, set glass 12,76 mm EPDM

Technical Characteristics:

Product Code	674000	674424
Material	AISI 304	AISI 304
Surface	satin	satin
Type	round glass clamp	round glass clamp

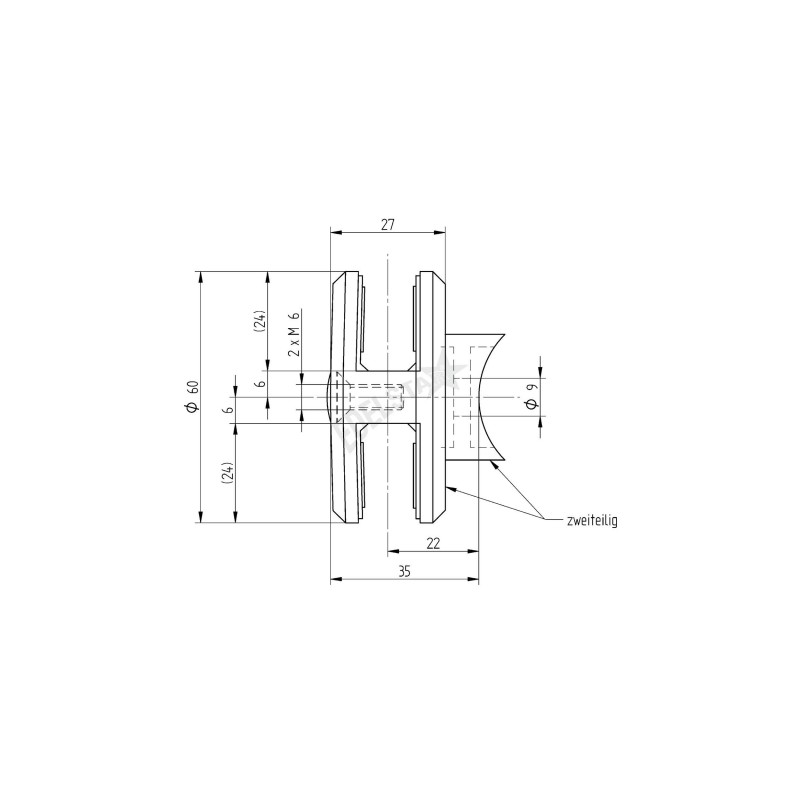

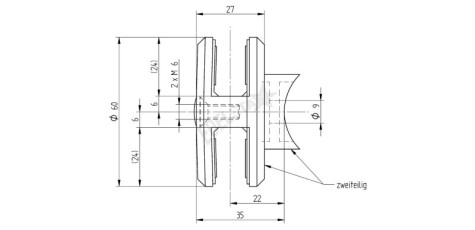

Measures	60 x 27 mm	60 x 27 mm
Pipe fitting	Straight	Ø 42,4 mm
