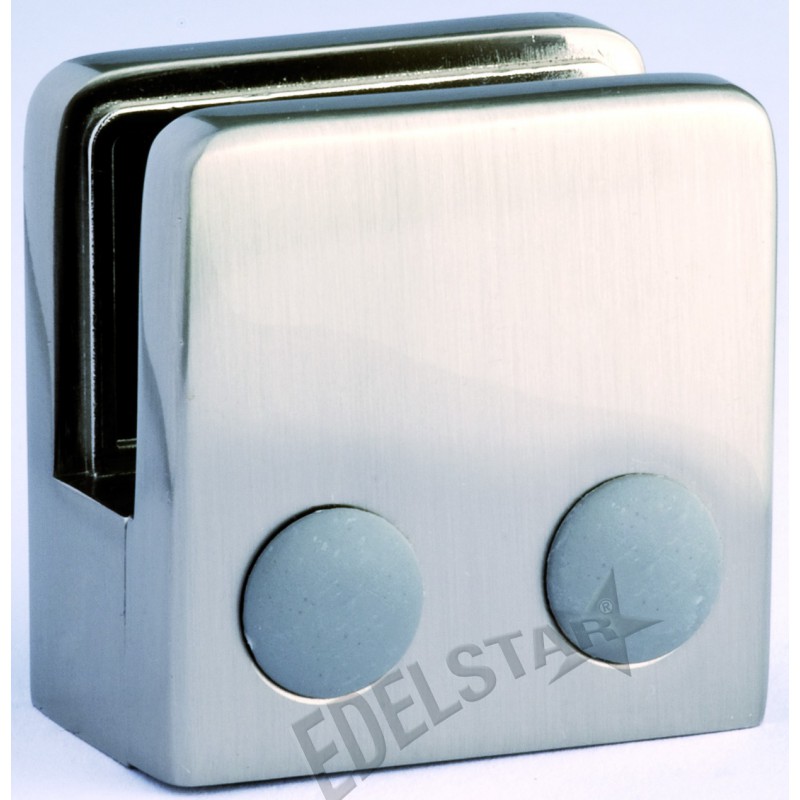

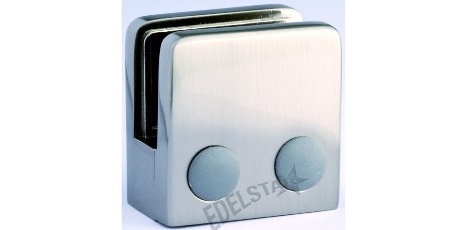

Square Glass Clamp

Glass Clamps:

• 689000 Glass clamp square, straight zinc die-cast connection
• 689337 Glass clamp square, tube Ø 33.7 mm die-cast zinc
• 689424 Glass clamp angular, tube Ø 42,4 mm zinc die-cast

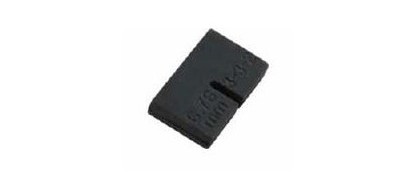

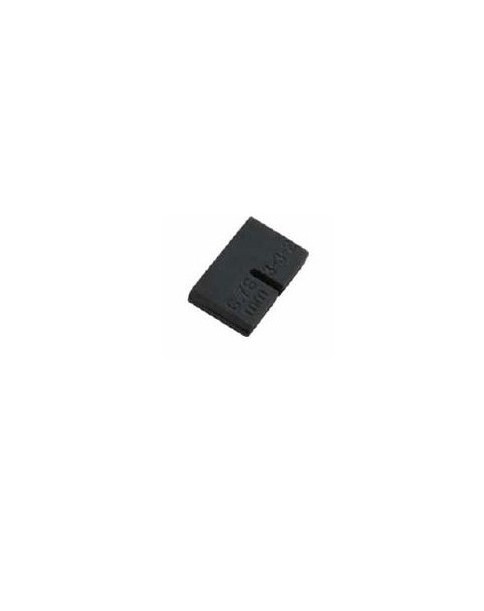

Rubber Inserts:

• 980600 Rubber insert, set, for glass 6,0 mm glass 6,00 mm EPDM
• 980800 Rubber insert, set, for glass 8,0 mm glass 8,00 mm EPDM
• 980876 Rubber insert, set, for glass 8,76 mm glass 8,76 mm EPDM
• 981000 Rubber insert, set, for glass 10,0 mm glass 10,00 mm EPDM

Technical Characteristics:

Product Code	660000	660337	660424
Material	Zinc	Zinc	Zinc
Surface	stainless steel effect	stainless steel effect	stainless steel effect
Type	square glass clamp	square glass clamp	square glass clamp
Measures	45 x 45 mm	45 x 45 mm	45 x 45 mm
Pipe fitting	Straight	Ø 33,7 mm	Ø 42,4 mm

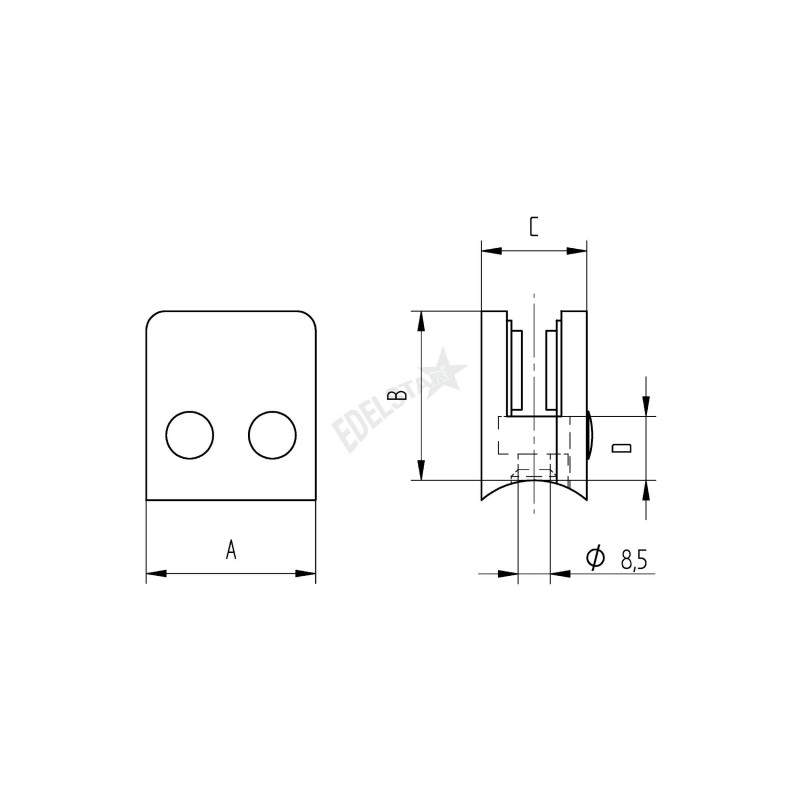

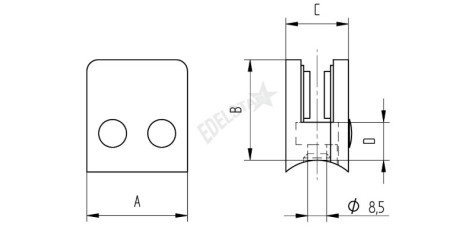

Details	A=45; B=45; C=28; D=17	A=45; B=45; C=28; D=17	A=45; B=45; C=28; D=17
