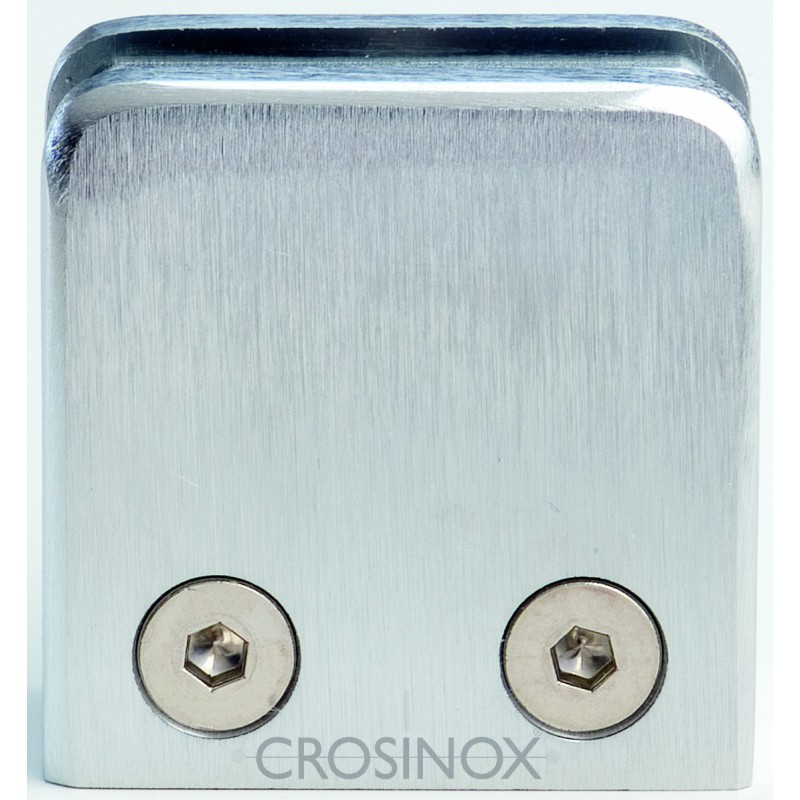

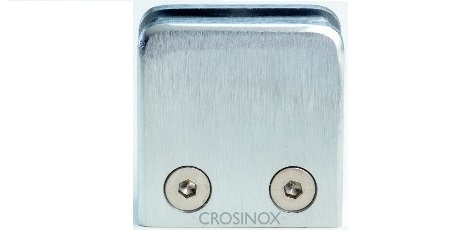

Square Glass Clamp

Glass Clamps:

• CN6060000 Glass clamp square, connection straight zinc die-cast

• CN6060337 Glass clamp square, tube Ø 33.7 mm zinc die casting

• CN6060424 Glass clamp square, tube Ø 42,4 mm zinc die casting

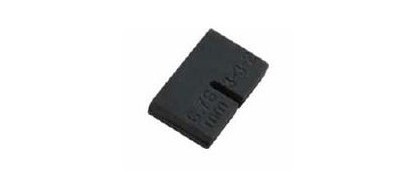

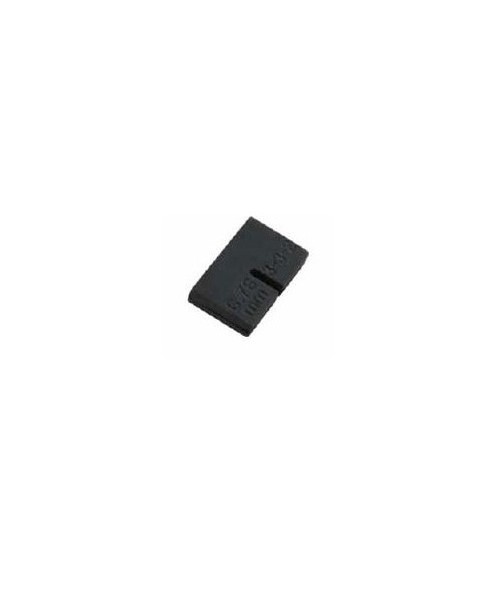

Rubber Inserts:

• CN6400310 Rubber insert, set glass 6,00 mm EPDM

• CN6400320 Rubber insert, set glass 7,52 mm EPDM

• CN6400330 Rubber insert, set glass 8,00 mm EPDM

• CN6400340 Rubber insert, set glass 8,76 mm EPDM

• CN6400350 Rubber insert, set glass 9,52 mm EPDM

• CN6400360 Rubber insert, set glass 10.00 mm EPDM

Technical Characteristics:

Product Code	CN6060000	CN6060337	CN6060424
Material	Zinc	Zinc	Zinc
Surface	stainless steel effect	stainless steel effect	stainless steel effect
Type	square glass clamp	square glass clamp	square glass clamp
Measures	53 x 53 mm	53 x 53 mm	53 x 53 mm
Pipe fitting	Straight	Ø 33,7 mm	Ø 42,4 mm

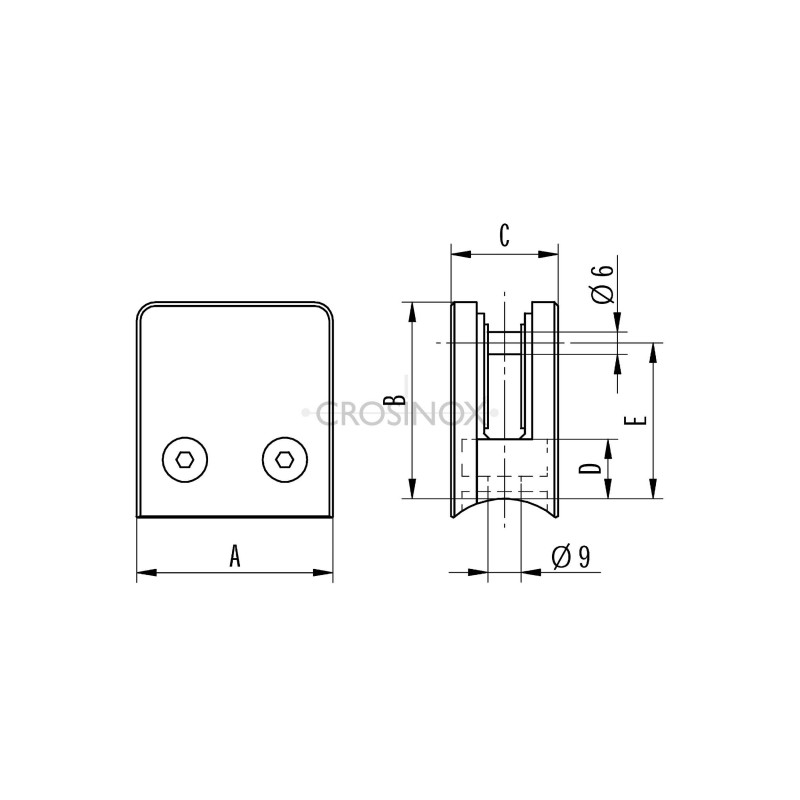

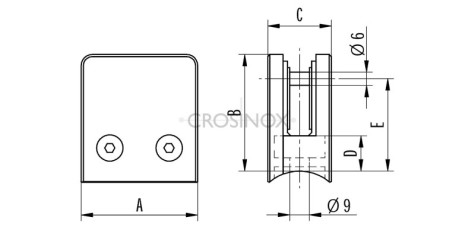

Details	A=53; B=53; C=29; D=16; E=42	A=53; B=53; C=29; D=16; E=42	A=53; B=53; C=29; D=16; E=42
