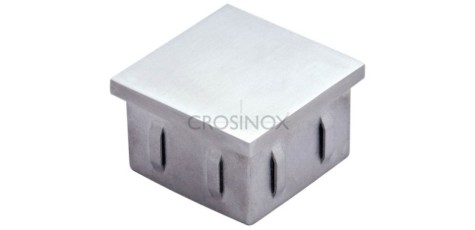

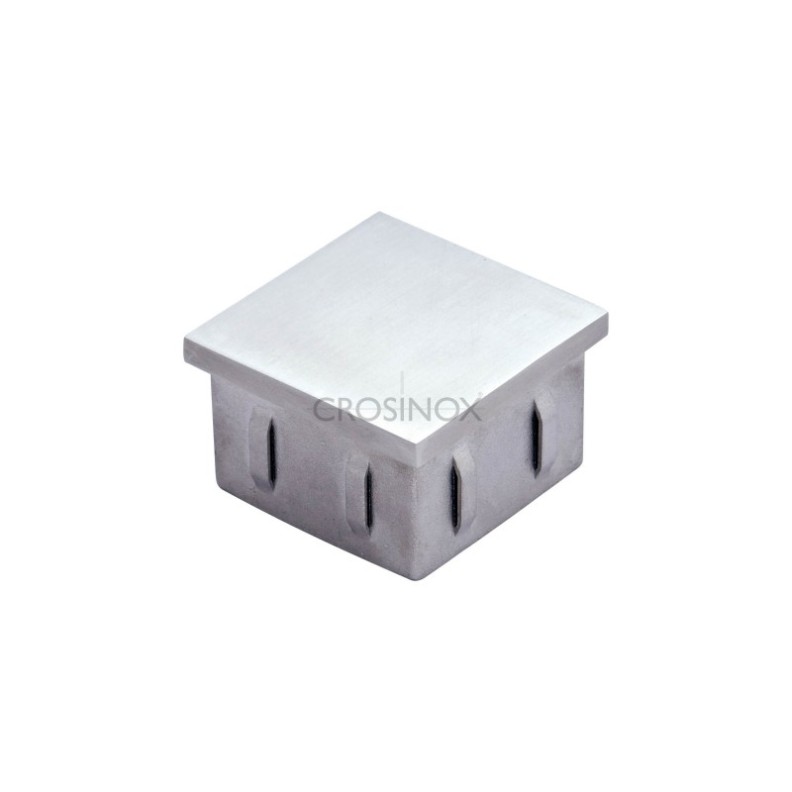

Square Cap - Terminal

Caps:

• CN3960030 Cap flexible, flat, tube 30 x 30 mm hollow V2A, polished

• CN3960040 Cap flexible, flat, tube 40 x 40 mm hollow V2A, polished

• CN3960050 Cap flexible, flat, tube 50 x 50 mm hollow V2A, polished

• CN3960060 Cap flexible, flat, tube 60 x 60 mm hollow V2A, polished

• CN3960080 Cap flexible, flat, tube 80 x 80 mm hollow V2A, polished

• CN3960100 Cap flexible, flat, tube 100 x 100 mm hollow V2A, polished

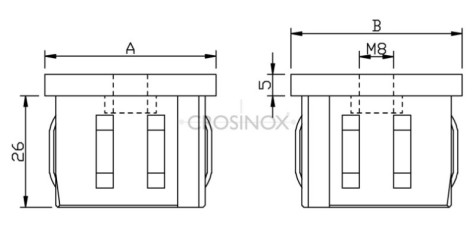

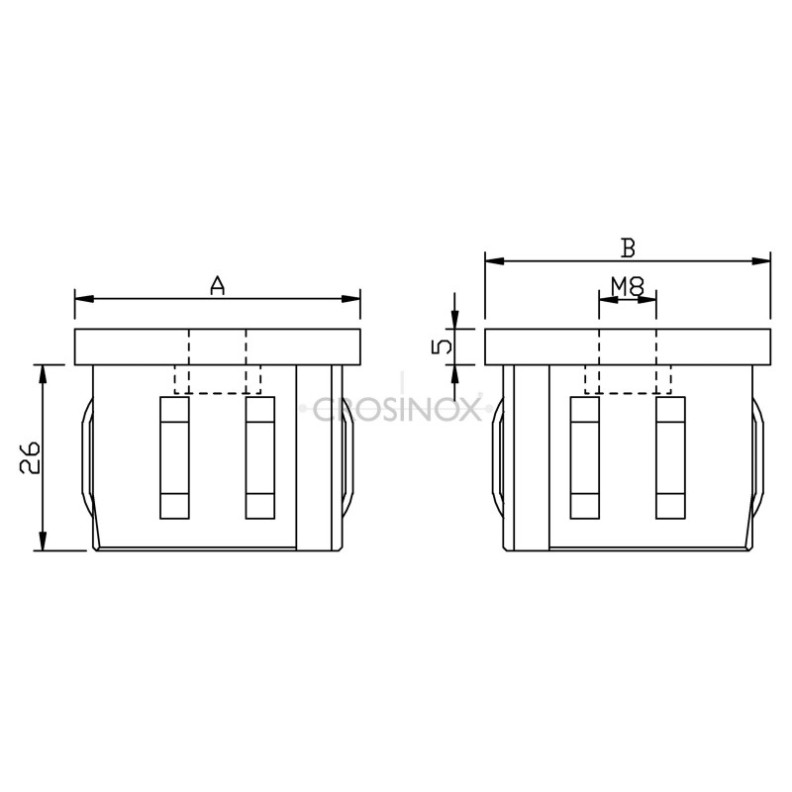

Technical Characteristics:

Product Code	CN3960030	CN3960040	CN3960050
Material	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin
Dimensions	30 x 30 mm	40 x 40 mm	50 x 50 mm
Type	empty	empty	empty
Wall Thickness	1,25 - 2,0 mm	1,25 - 2,0 mm	1,25 - 2,0 mm







Product Code	CN3960060	CN3960080	CN3960100
Material	AISI 304	AISI 304	AISI 304
Surface	satin	satin	satin
Dimensions	60 x 60 mm	80 x 80 mm	100 x 100 mm
Type	empty	empty	empty
Wall Thickness	1,25 - 2,0 mm	1,25 - 2,0 mm	1,25 - 2,0 mm
