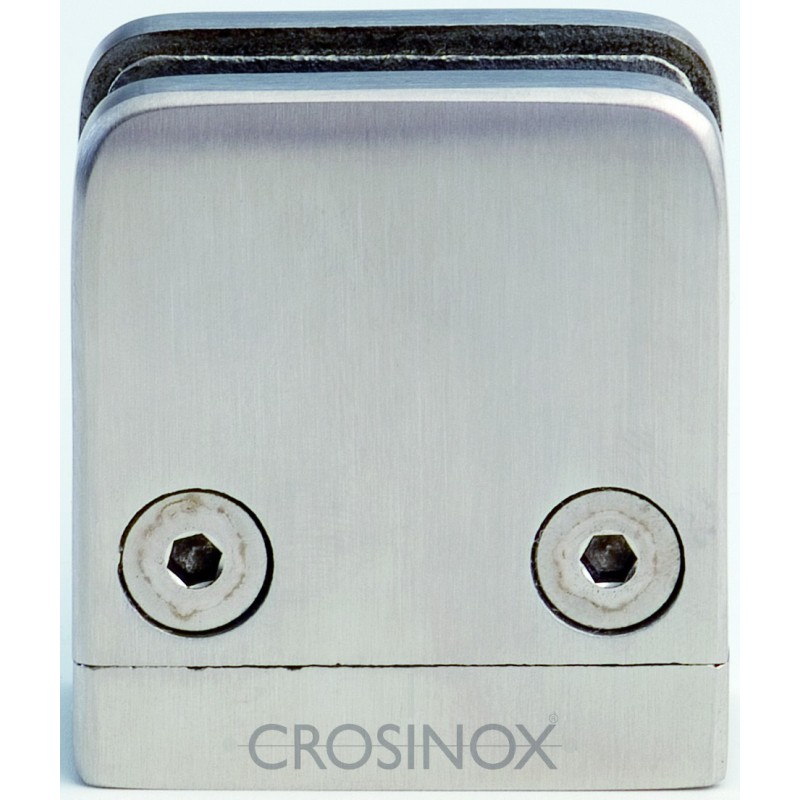

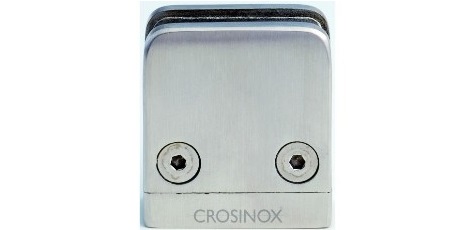

Square Glass Clamp

Glass Clamps:

• CN6100000 Glass clamp square, connection straight V4A, polished

• CN6100337 Glass clamp square, tube Ø 33.7 mm V4A, polished

• CN6100424 Glass clamp square, tube Ø 42,4 mm V4A, polished

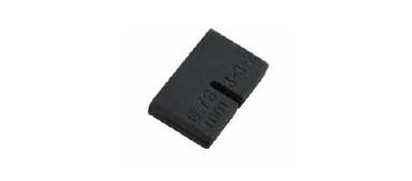

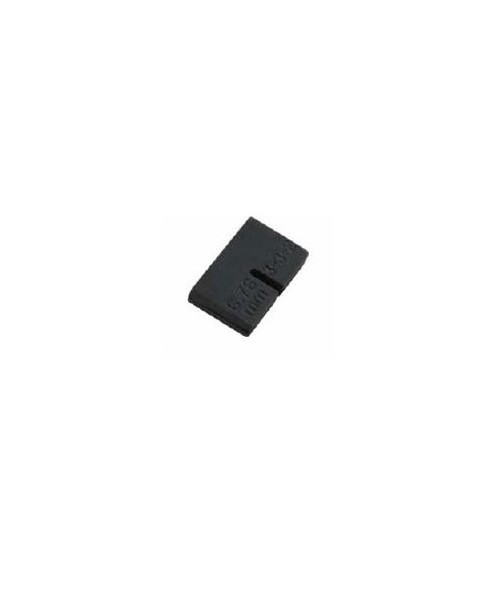

Rubber Inserts:

• CN6400210 Rubber insert, set glass 6,00 mm EPDM

• CN6400220 Rubber insert, set glass 7,52 mm EPDM

• CN6400230 Rubber insert, set glass 8,00 mm EPDM

• CN6400240 Rubber insert, set glass 8,76 mm EPDM

• CN6400250 Rubber insert, set glass 9,52 mm EPDM

• CN6400260 Rubber insert, set glass 10,00 mm EPDMg

Technical Characteristics:

Product Code	CN6100000	CN6100337	CN6100424
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Type	square glass clamp	square glass clamp	square glass clamp
Measures	43 x 43 mm	43 x 43 mm	43 x 43 mm
Pipe fitting	Straight	Ø 33,7 mm	Ø 42,4 mm

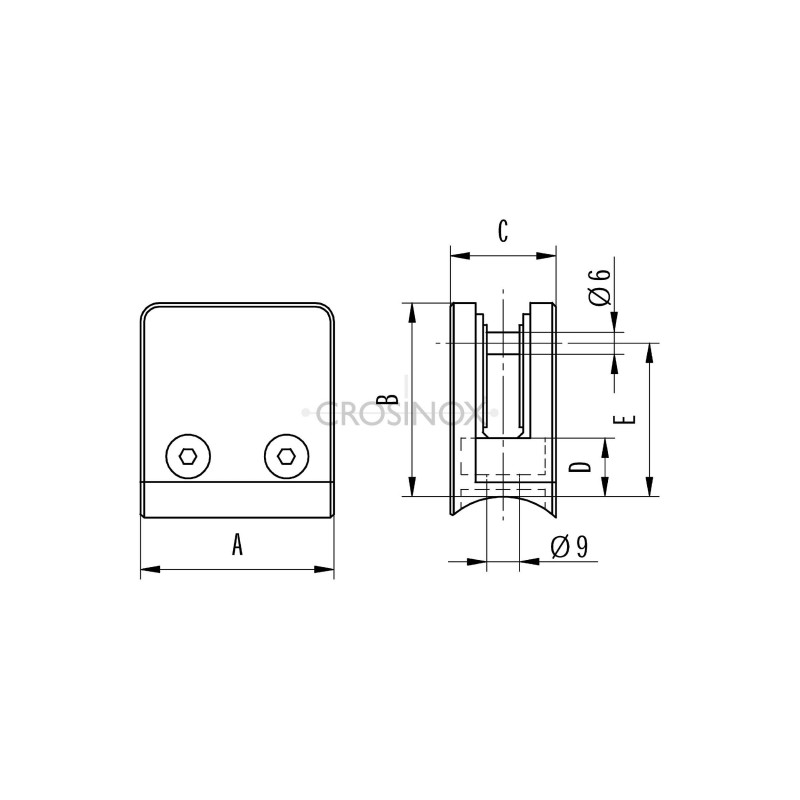

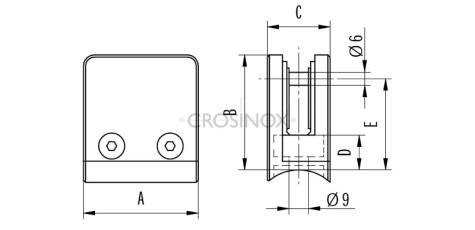

Details	A=43; B=43; C=24; D=16; E=31,5	A=43; B=43; C=24; D=16; E=31,5	A=43; B=43; C=24; D=16; E=31,5
