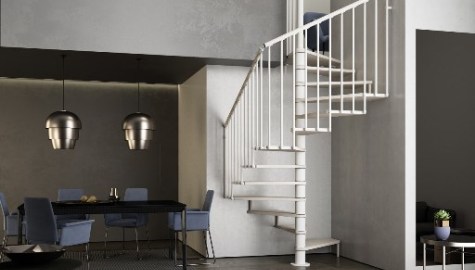

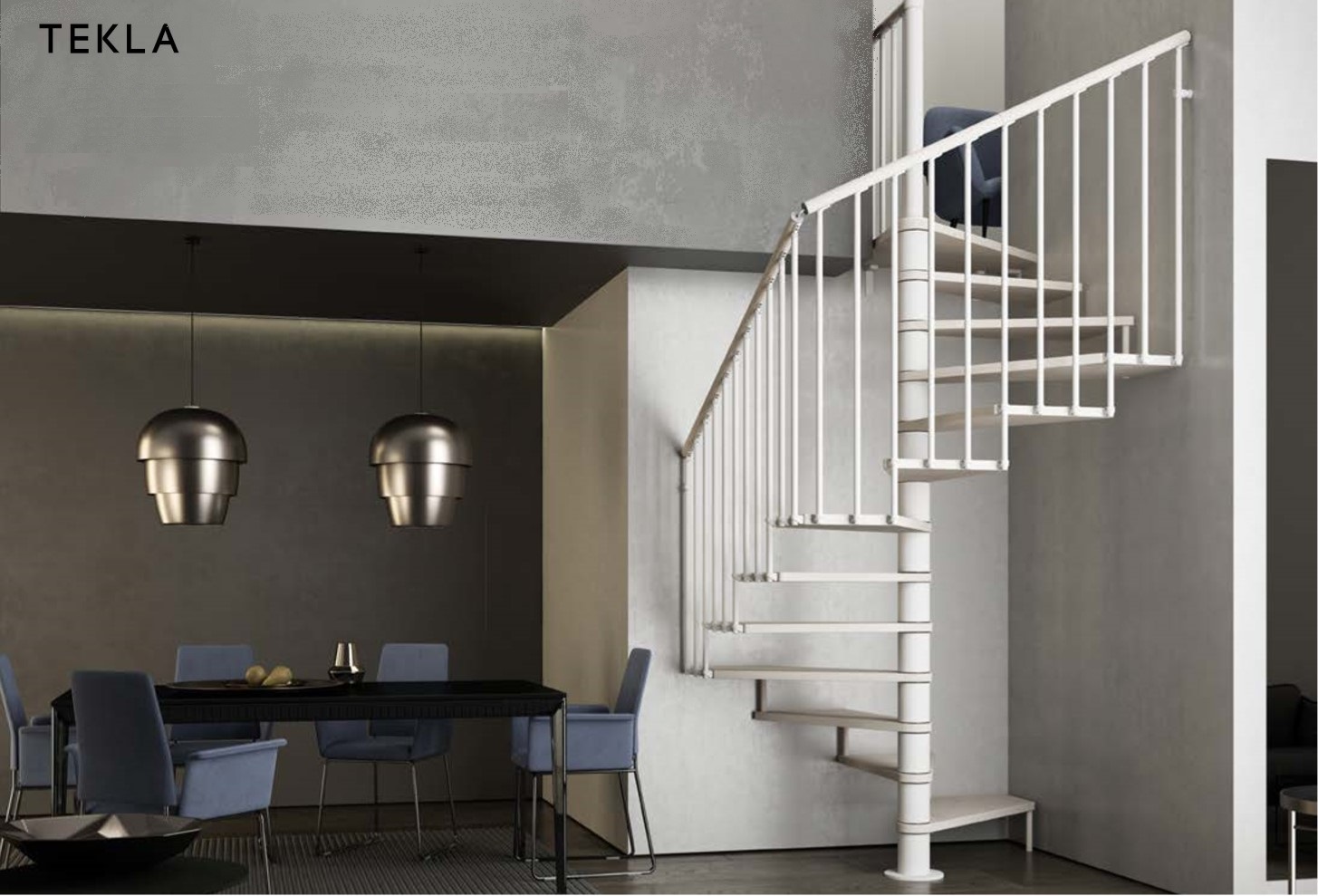

Stair Smart Square Tekla 121 cm

Stair Smart Square Tekla 121 cm
The square base spiral staircase is perfect for installing between two or more
walls. The shape of the steps has been specifically developed to make the most
of all the space with a practical and functional solution.

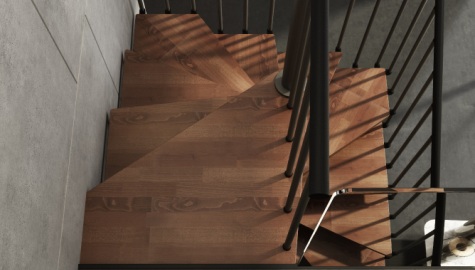

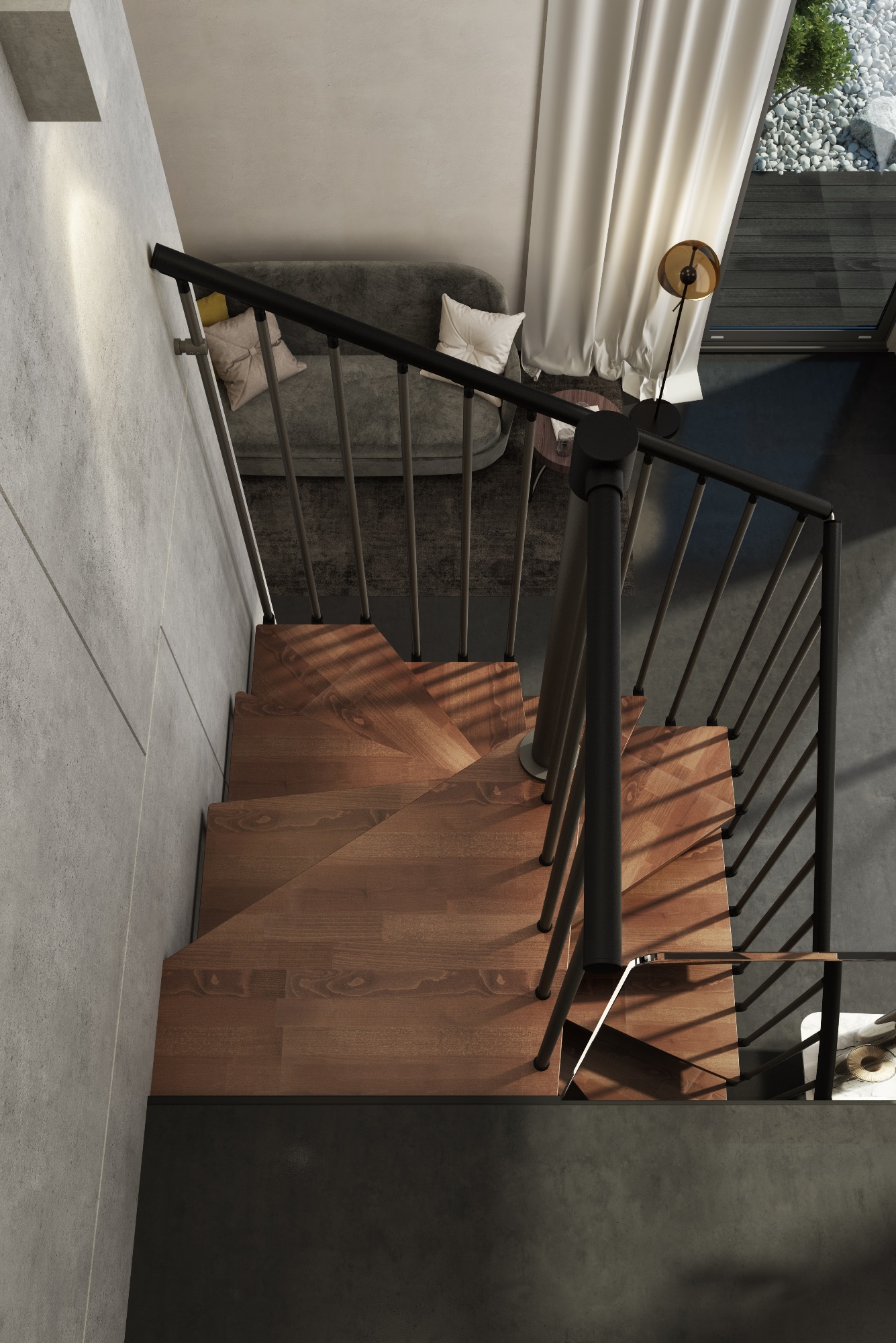

Steps
• Solid beech wood, 40 mm thickness
• No knots or splits, maximum stability and mechanical strength thanks to Finger Joint technology
• Non-toxic water-based coating: 3 layers of paint handrail
• In plastic material matching the colour of the structure

Structure
• Steel modular elements
• Paint powder coated with matt scratch proof finish railing
• Steel vertical columns painted in the same colour as the structure (distance between the columns less than 10 cm)

Wood colour (steps):
•White 84, Natural 12, Walnut 25, Sand 27, Cement 89, Dove 87, Wengé 23 (standard colours)
•Lacquered White 94, Lacquered Black 95 (lacquered colours, extra charge)

Handrail:
•Plastic handrail (standard)
•Wood handrail (extra charge)

Steel colour (structure and railing):
•White Silver grey Anthracite grey

The system for adjusting the height between steps (rise) allows you to:
• Obtain different heights between floors with the same number of steps.
• Obtain the height between the floors as required with more or fewer steps (this means you
can find the best compromise between the step height and the space occupied by the staircase).

Adjustuble rise (height between steps):
•Min. 20.5 cm
•Max. 24 cm
•During installation it is possible to adjust the rise by changing the number of spacers

*Tekla stair includes railing and handrail for 2/4 sides (square). In case you want extra railing, you can buy it (see attributes).
